Description

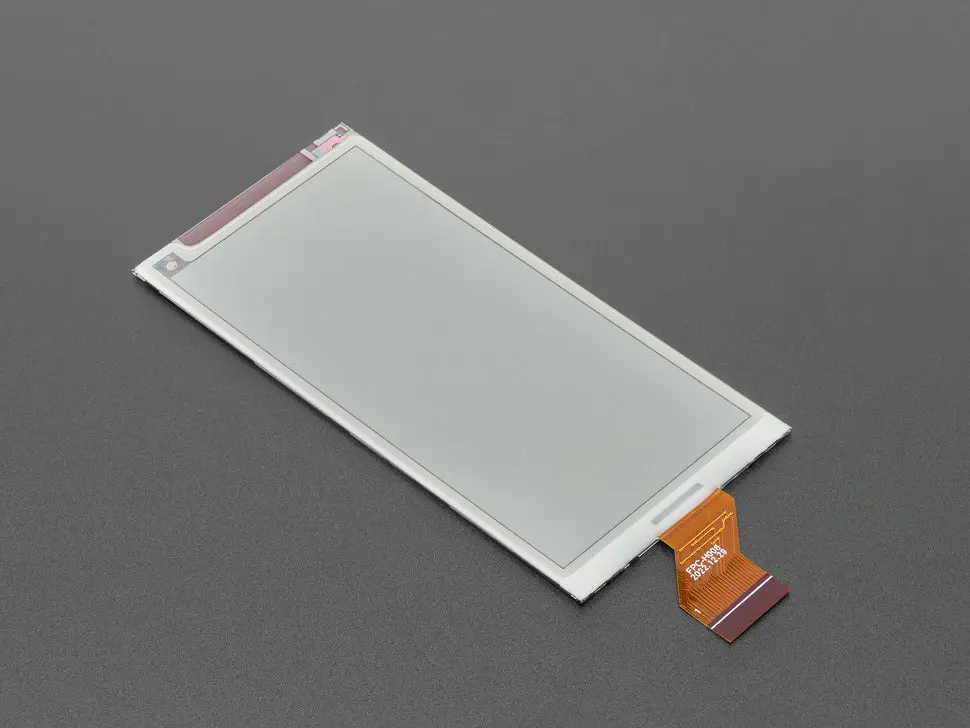

Experience the vivid and power-efficient display technology with the Adafruit 3.52″ 340×180 Quad-Color eInk / ePaper Bare Display, featuring black, red, yellow, and white colors. This bare display module, with its 340×180 pixel resolution, offers high contrast and daylight readability, reminiscent of printed paper.
Key Features:
- 3.52″ Quad-Color eInk / ePaper display with 340×180 pixel resolution
- Colors: black, red, yellow, and white on a white-ish background
- Uses JD79667 chipset – compatible with the Adafruit_EPD Arduino library
- Flipped 24-pin FPC connector (bottom contacts), includes Flex A-B cable and extender for compatible connection
- Static, low-power display: images remain visible even without power
- Comes with a 50mm 24-pin 0.5mm pitch FPC Flex A-B cable and 24-pin 0.5mm FFC / FPC extender
Included Items:
- 3.52″ 340×180 Quad-Color eInk / ePaper Bare Display
- 24-pin 0.5mm pitch FPC Flex A-B (D) type Cable – 50mm long
- 24-pin 0.5mm FFC / FPC Extender
Recommended Driver Boards:
- Feather RP2040 ThinkInk – plug-and-play solution with Arduino or CircuitPython support
- eInk Feather Friend – FeatherWing add-on for any Feather board
- eInk Breakout Friend – breadboard-friendly adapter providing level shifting
Note: This is a bare display only and requires a compatible driver board with a 24-pin FPC e-paper connector. Pixels are exclusive and do not mix colors. For advanced graphics, see our guide on dithering.
