Description
The HDMI 4 Pi: 5″ Display (No Touch) with Mini Driver is a compact 5-inch TFT display with WVGA 800×480 resolution, designed for embedded computing applications. The visible display measures 5″ diagonal and features a ‘raw’ TTL display commonly used in portable electronics.

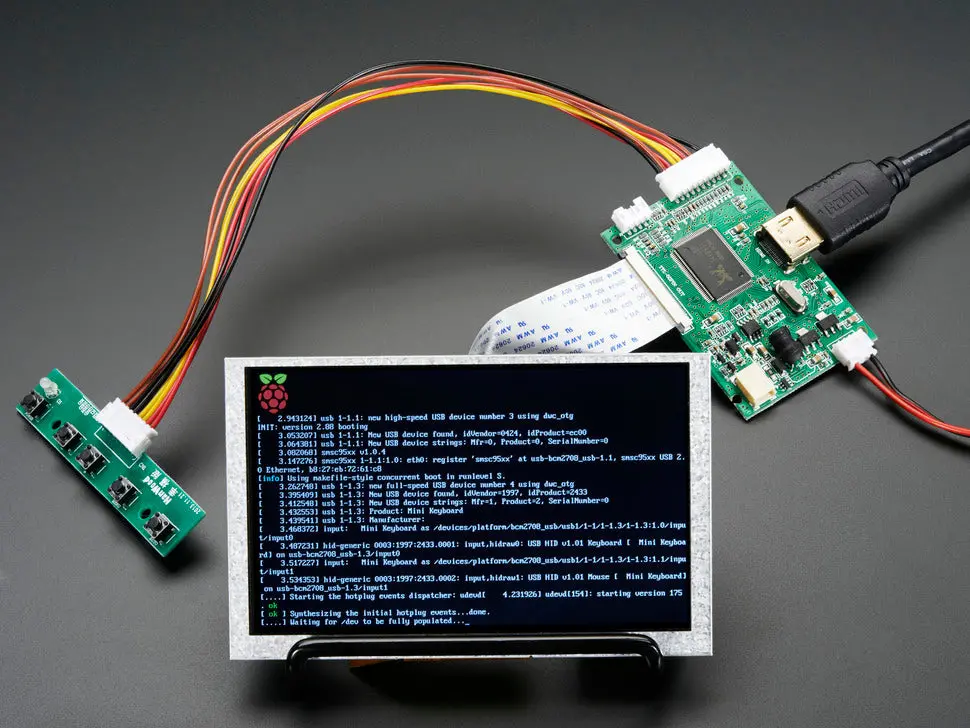

This display includes a small driver board powered via USB Micro B that accepts HDMI input, making it compatible with Raspberry Pi, BeagleBone Black, and other HDMI output devices. It requires a 5V power supply capable of delivering 500mA.
The display is not IPS, so it is best for direct viewing. It offers 200cd/m2 brightness and a 300:1 contrast ratio. The driver board features buttons to adjust brightness, color, and contrast through a menu system.
Key Features:
- 5″ WVGA (800×480) TFT display with TTL interface
- Mini driver board with HDMI input
- Powered via USB Micro B, 5V 500mA required
- Brightness: 200cd/m2, Contrast: 300:1
- Visible area: 108mm x 65mm (16:10 aspect ratio)
- Resolution: 800 x 480 pixels
- Driver board includes 5-button control keyboard for display settings
- Compact dimensions: Screen – 76mm x 121mm x 3mm
- Weight: 61g
- Not HDCP compatible
Suitable for Raspberry Pi and other devices with HDMI output. Suggested config.txt adjustment is recommended for Raspberry Pi to set HDMI resolution at 800×480. Power adapter not included; a USB 5V 500mA power supply is required.
Note that this product is currently out of stock. You can sign up to be notified when it becomes available again.
