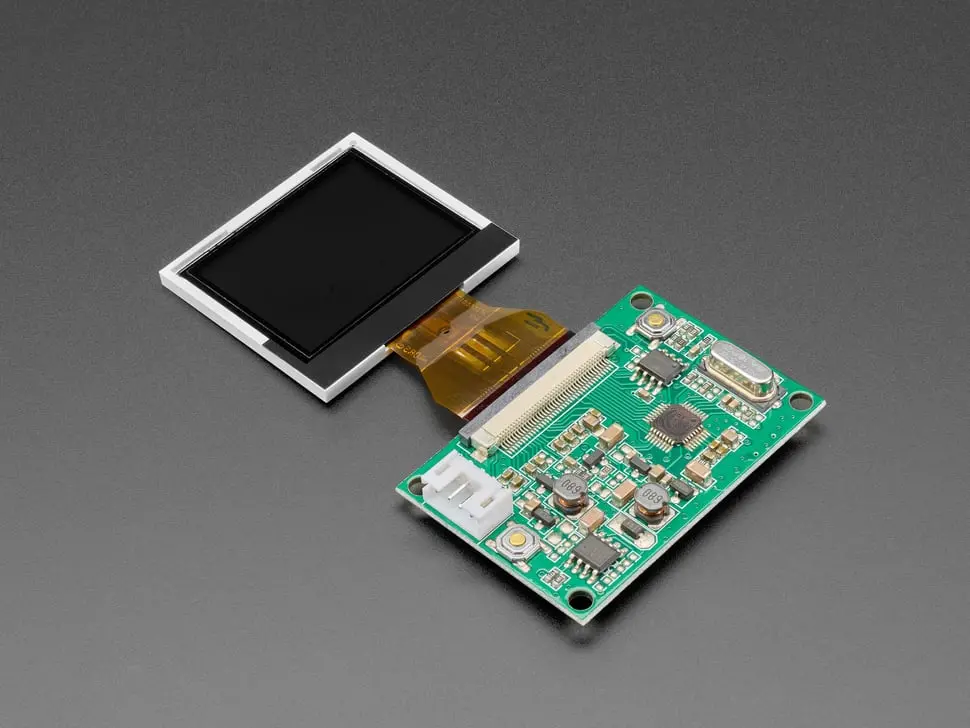

Experience a miniature television with a 1.5″ diagonal TFT display equipped with an NTSC/PAL driver board. This versatile display is easy to use: connect 6-12VDC power to the red and black wires and a composite video source to the RCA connector to get started. Adjust the LED backlight brightness across 5 levels with the onboard button.
Compatible with analog composite-video output devices such as Raspberry Pi, YBox, or Propeller w/Video out. Note that digital video signals like VGA or HDMI are not supported. This delicate display requires careful handling to avoid damaging the flex connector.
- Power input: 6-12VDC via onboard buck converter
- Low power consumption: 50mA at 12V, 120mA at 5V
- Control board dimensions: 48mm x 32mm
- Mounting holes: Four 3mm holes on 43mm x 28mm square
- Resolution: 160 RGB x 240
- Dot pitch: 0.0625mm (width) x 0.0938mm (height)
- Visible display size: 29.79mm x 22.32mm
- Display case size: 37.1mm x 32.7mm x 2.6mm
- Brightness setting resets on power cycle
Important: Handle with care to avoid flex connector damage; no replacements available for mishandling.
