Description

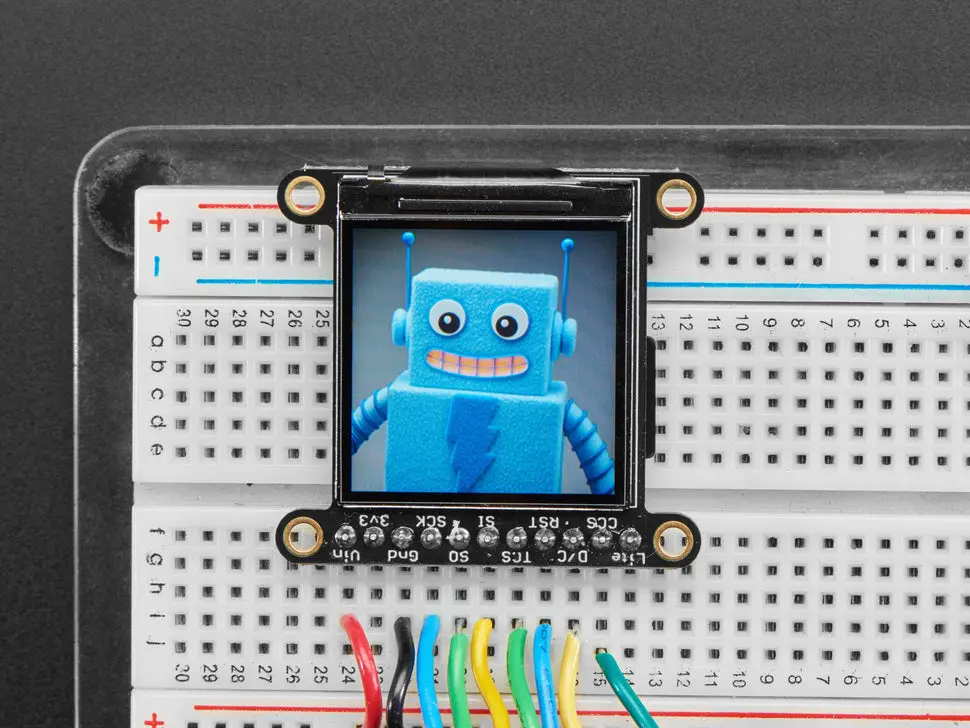

The Adafruit 1.3″ 240×240 Wide Angle TFT LCD Display with MicroSD is a compact, high-density display perfect for any project requiring a small, colorful, and bright screen. This 1.3 inch diagonal IPS display features 240×240 16-bit full-color pixels at 260 ppi with excellent viewing angles up to 80 degrees off-axis in any direction.
It uses a 4-wire SPI interface and the ST7789 driver, making it compatible with any microcontroller or microcomputer. The breakout board includes a built-in microSD card slot for loading full-color bitmaps (microSD card not included), a 3.3V regulator, auto-reset circuitry, and a 3/5V logic level shifter. An 18-pin EYESPI standard FPC connector with a flip-top connector allows for easy cabling using a 0.5mm pitch FPC cable.
The display comes with a 1×16 header for easy breadboarding and includes mounting holes for secure attachment.
- 1.3″ LCD TFT IPS display, 240×240 pixels, 260 ppi
- Built-in microSD card slot (microSD card not included)
- 4-wire SPI interface with ST7789 driver
- 3.3V regulator and 3/5V logic level shifting
- 18-pin EYESPI connector for easy cabling
- Dimensions: 35.8mm x 35.8mm x 5.3mm
- LCD active area: 26mm x 26mm
- Mounting holes spaced 33mm x 30mm
- Weight (assembled): 7.6g
This display is well supported by Adafruit’s Arduino graphics library and has compatible libraries for Raspberry Pi and CircuitPython, making it easy to integrate into a wide variety of projects.
