Description

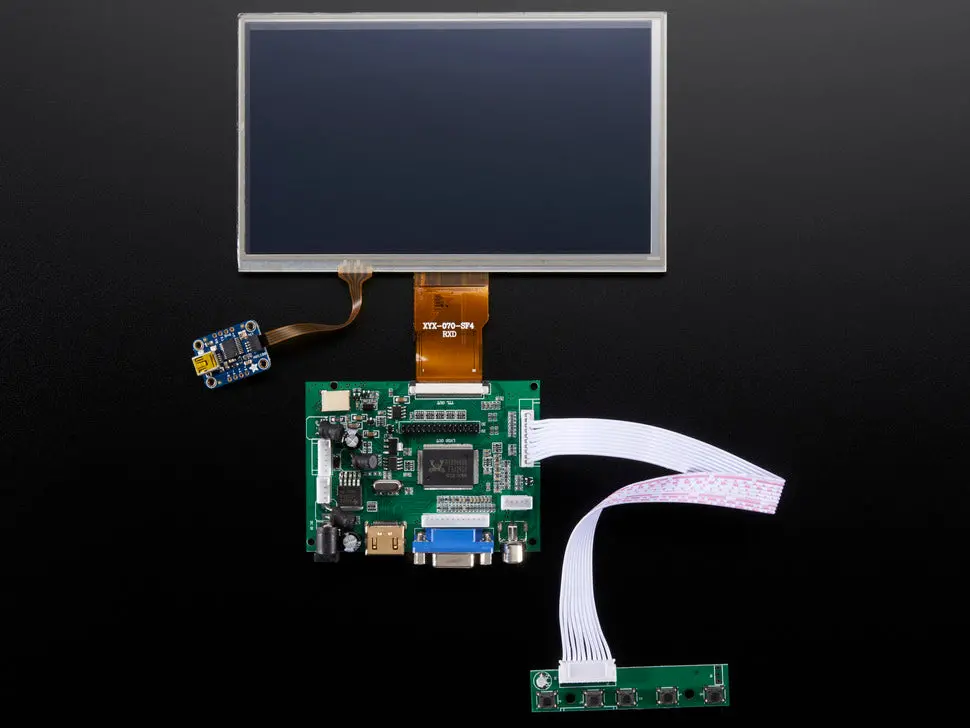

Make a lovely, touchscreen video setup with a 7″ screen at 1024×600 resolution with a resistive touchscreen overlay! This display includes a driver board with HDMI, VGA, and Composite inputs.
The package comes with a Resistive Touch Screen to USB Mouse Controller (AR1100), allowing easy connection from your computer or Raspberry Pi. The AR1100 controller acts as a touch-to-USB converter with calibration software available for Windows. The touchscreen functions as a USB mouse, requiring no special drivers, and has been tested on Mac, Windows, and Debian Linux (Raspbian).
This version features a 1024×600 resolution in a 7″ diagonal size but is not IPS, so viewing angles are not wide. The display includes a wired PCB with buttons to adjust brightness, color, contrast, and input selection.
Suitable for devices with HDMI, VGA, or NTSC/PAL outputs. Please note it does not support DVI without a converter or SECAM. For Raspberry Pi users, editing the config.txt file to set HDMI resolution to 1024×600 is recommended.
Important: Power adapter, cables, wire stand, and Raspberry Pi are not included. You will need a 5-12V DC power supply separately.
- Display resolution: 1024 x 600
- Display size: 7″ diagonal
- Inputs: HDMI, VGA, Composite (NTSC/PAL)
- Touchscreen type: Resistive touchscreen with USB mouse controller (AR1100)
- Power: 5-12V DC
- Display weight (excluding power cable): 150 g
- Not HDCP compatible (cannot be used with secured HDMI sources)
For more details and suggested configuration, refer to the HDMI Display Überguide.
