Description

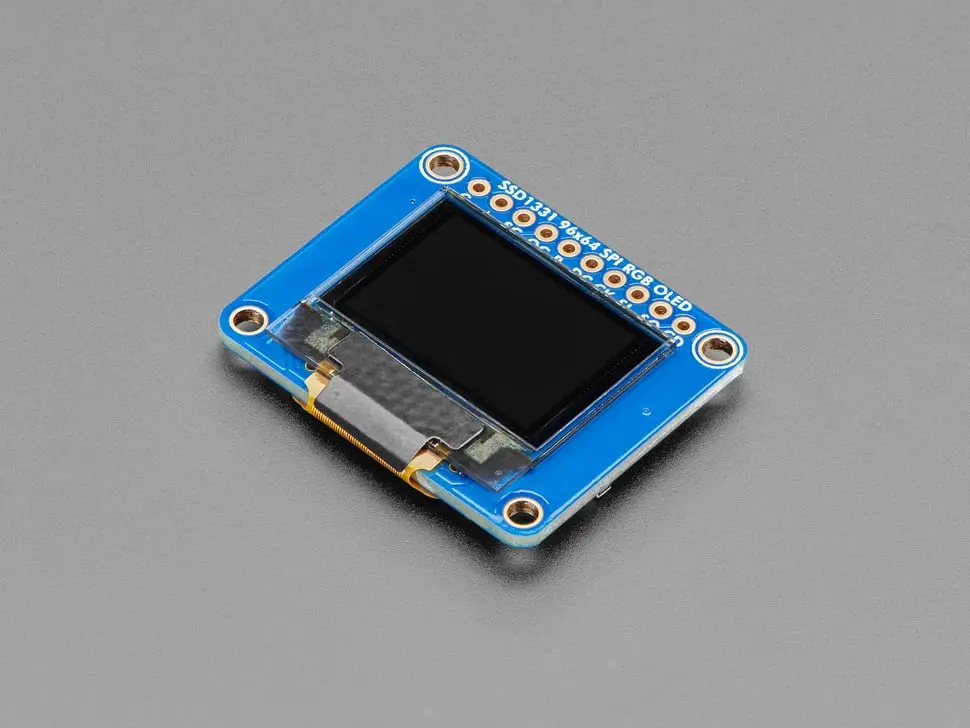

Experience vivid, high-contrast colors with the OLED Breakout Board featuring a 0.96″ diagonal display and 16-bit color support. This compact display offers 96×64 RGB pixels with individually addressable red, green, and blue OLED elements for vibrant visuals without the need for a backlight.
The breakout board integrates a microSD card holder and a boost converter to supply 12V required by the OLED. It supports SPI communication with 4-wire write-only SPI interface and includes built-in logic level shifting for easy use with 3-5VDC logic and power.
Key features include:
- 0.96″ diagonal OLED display with 16-bit color depth
- 96×64 RGB pixels
- SSD1331 driver chip for display management
- 4-wire SPI interface (clock, data, chip select, data/command, optional reset)
- Built-in microSD card slot for bitmap image display
- Built-in logic level shifting (compatible with 3.3-5V logic and power)
- Ultra-small and high contrast OLED technology (true black)
- PCB dimensions: 31.5mm x 35.5mm x 5mm
The display’s current draw depends on active pixels, typically around 25mA excluding the microSD card. Open-source graphics libraries and example code for Arduino are available to help get started quickly.
Included in the package is a fully assembled breakout board with the OLED screen and microSD card holder ready for your next project.
