Kitronik Xylophone Electronics Project Kit

Description

The Kitronik Xylophone Project Kit is an engaging electronic project for learning and music creation. It features an 8-note xylophone controlled by a pre-programmed PIC micro-controller that converts key presses into musical notes. The xylophone notes are played by touching the tabs along the side of the PCB.

The kit includes all necessary components to build your own xylophone and requires three AA batteries to operate.

Features:

• 8 note xylophone
• Pre-programmed PIC micro-controller chip for note frequency control

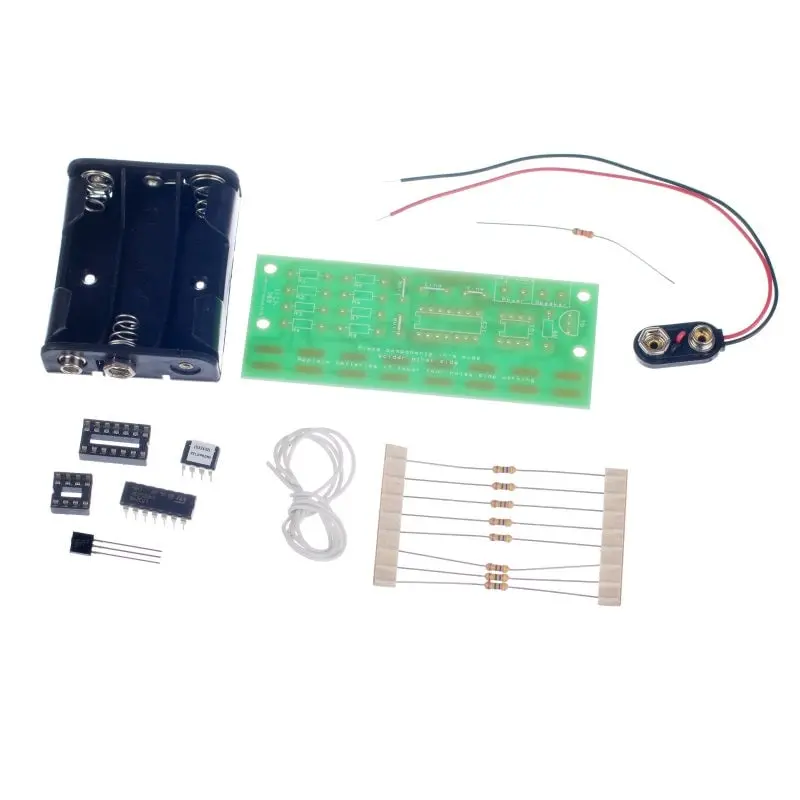

Contents:

• 1 x Pre-programmed PIC Chip
• 1 x PP3 Battery Clip Lead (Heavy Duty)
• 1 x 3xAA Battery Cage with Clip
• 1 x LM324 Quad Op Amp
• 1 x IC Socket 14 Pin
• 1 x CR1220 PCB Mount Battery (with Pins)
• 1 x IC Socket 8 Pin
• 8 x 4.7MΩ Resistor
• 1 x 3.3KΩ Resistor
• 1 x BC337 NPN Transistor
• 1 x 8Ω 50mm Speaker
• 1 x Xylophone Project Kit PCB

Dimensions:

• PCB Length: 93mm
• PCB Width: 38mm

Technical Information:

• PCB Component Count: 13
• Voltage Nominal: 4.5V
• Voltage Range: 3.3-5V
• Standby Current: 1.6mA
• Current Max at Nominal Voltage: 115mA

This kit is supplied in a simple grip seal bag and requires 3 AA batteries (not included).

Resources:

• Download essential information PDF
• Download full teaching resources PDF
• Piano Mounting Laser Cutter File (.dxf)
