Description

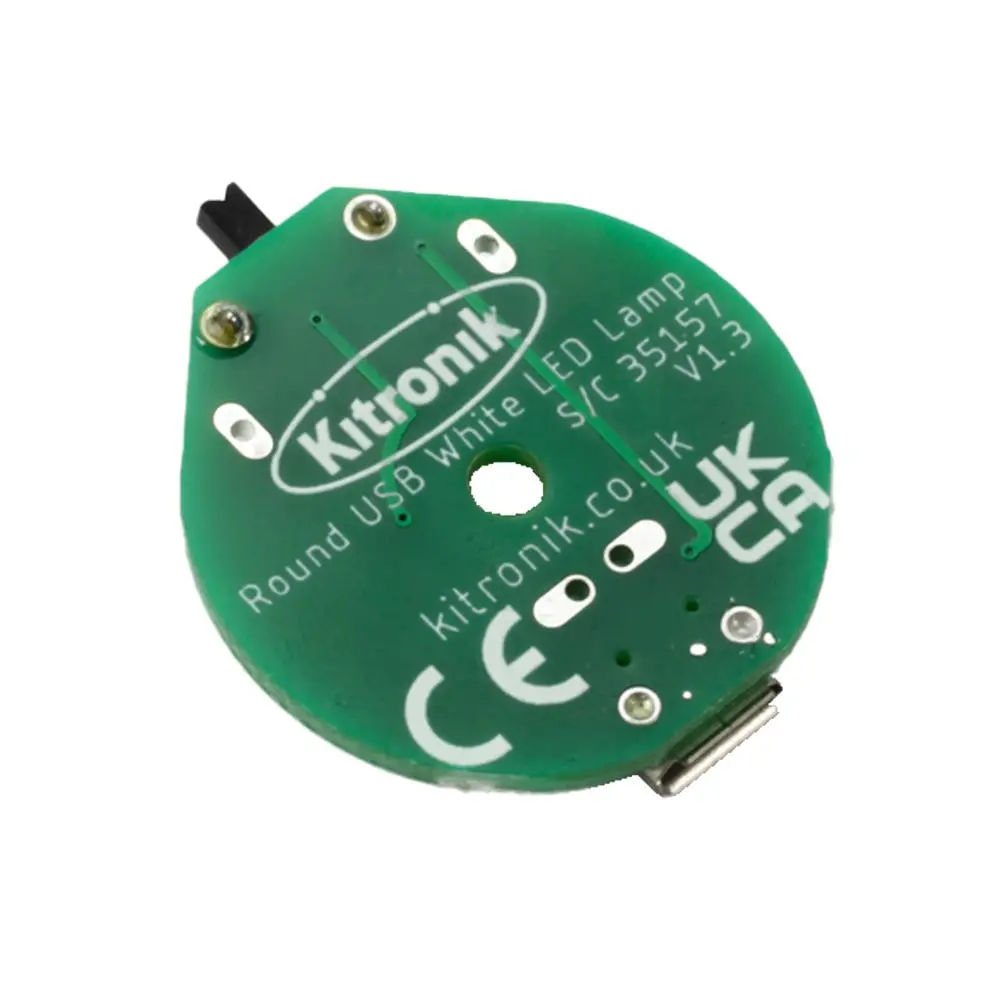

The Kitronik Round USB White LED Lamp is a low-power lighting solution featuring 5 white LEDs arranged in a circular layout with 72° separation for even illumination. Designed to fit within a 28mm square area, it is perfect for desk lamps, torch lights, and creative enclosure designs.
Powered via a micro USB connector, it can be conveniently powered by a computer USB port or any suitable 5V power supply, drawing under 100mA which is safe for USB ports.
The lamp includes an onboard on/off switch and pads for an optional remote switch connection, allowing flexible control options. A single M3 mounting hole at the center allows easy installation into your projects.
Features:
- Low power consumption (under 100mA)
- 5 white LEDs evenly spaced at 72° apart
- Onboard on/off switch with pads for additional remote switch
- Single M3 (3.3mm) mounting hole at the center
- Compact design within 28mm diameter and 4mm height
- Powered via micro USB connector from computer or 5V power supply
Contents:
- 1 x Round USB White LED Lamp with onboard switch
Dimensions:
- Maximum Height: 4mm
- Maximum Diameter: 28mm
- Mounting Hole Diameter: 3.3mm (M3)
Requires:
USB lead or USB lead plus power supply (sold separately)
