Kitronik USB-Powered 1W LED Lamp Kit – Version 2.0

Description

Our newest version of the popular Micro USB Lamp Kit allows you to build an economic mains powered lamp powered from a standard Micro USB phone charger (available separately). The V2.0 version includes a purpose-designed board which makes the kit neater and easier to build than previous versions.

The kit features an ultra-bright 1W Power LED connected via a cable to a PCB that incorporates a power switch, Micro USB connector, and power resistor.

Assembly requires soldering the LED cable, resistor, and switch to the board.

• Easy to build lamp kit.
• Ultra-bright 1W Power LED.

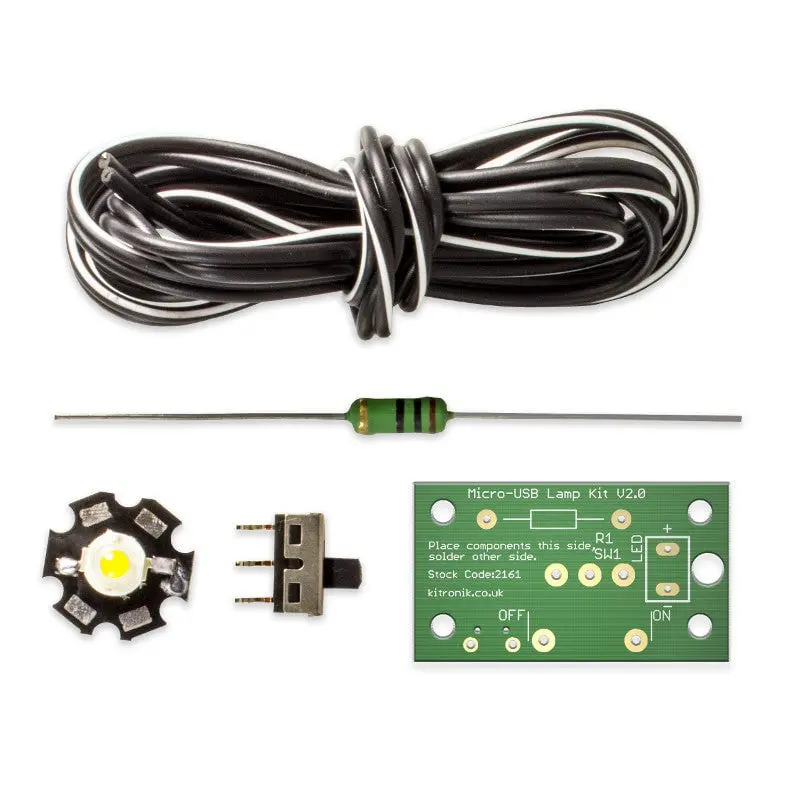

Contents:

• 1 x Wirewound Resistor, 2.5W, 10 Ohms
• 1 x 1W Warm White Power LED Star
• 0.5m Figure 8 Speaker Cable 2x (7×0.18mm)
• 1 x PCB Mount Slide Switch
• 1 x PCB

Dimensions:

• Max Built Height: 12mm
• PCB Length: 44mm
• PCB Width: 25mm
• PCB Height: 1.5mm

Technical Information:

• PCB Length: 44mm
• PCB Width: 25mm
• PCB Component Count: 3
• Voltage Nominal: 5V
• Voltage Range: 3.5V to 6V
• Current Max at Nominal Voltage: 0.3A

Requires: Soldering Iron, Solder, Wire Cutters, Wire Strippers, and 5V Micro USB Power Supply (sold separately).
