Kitronik USB-Powered Mini Fan DIY Kit

Description

The Kitronik USB Fan Kit allows you to build an economical desk fan powered by a standard USB port or USB power supply (available separately). It features a 90mm fan blade and motor connected to a PCB with a power switch, resettable fuse, and resistor.

This low part count kit is very easy to build, making it suitable for beginners and students. The resettable fuse protects the circuit by preventing excessive power draw if the motor stalls. This kit is ideal for creating imaginative enclosures due to its simplicity and size.

Features:

• Low cost DIY fan kit, great for beginners
• USB powered fan project

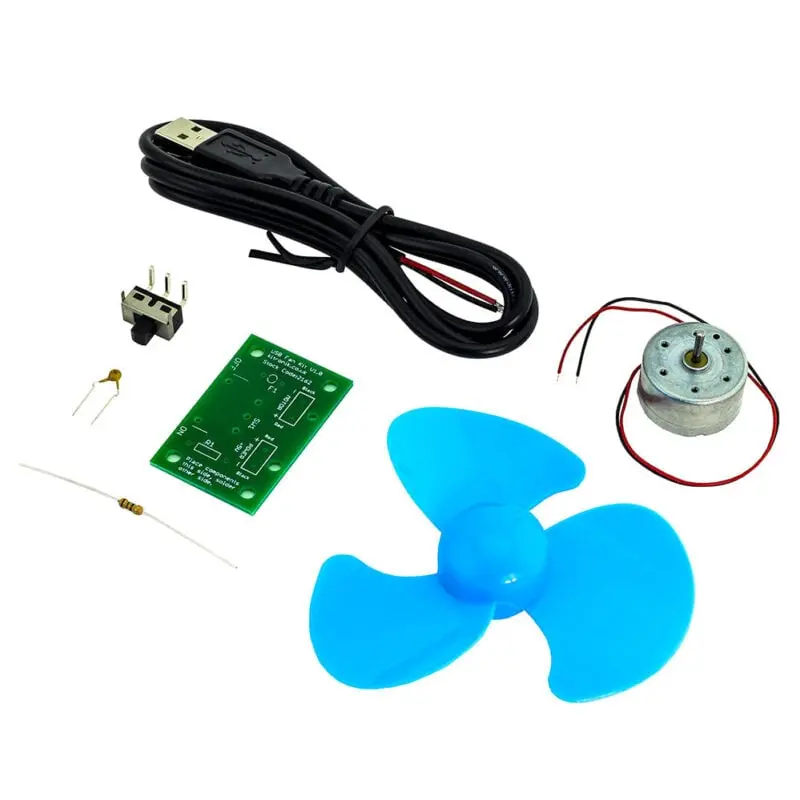

Contents:

• 1 x 90mm Blue Three Blade Propeller
• 1 x Low Inertia Solar Motor – 1820 RPM
• 3 x USB Power Lead
• 1 x PCB Mount Slide Switch
• 1 x 15 Ohm Resistor
• 1 x Resettable Fuse 0.05A 60VDC
• 1 x USB Fan Kit PCB

Dimensions:

• PCB Length: 43mm
• PCB Width: 28mm
• PCB Height: 1.7mm
• Fan Diameter: 90mm

Requires:

• Soldering Iron
• Solder
• Standard USB port or USB power supply (available separately)

Additional Resources:

• Teaching Notes PDF
• Essential Information PDF
• 3D Printed Desktop Fan Resource
