Kitronik Steady Hand Challenge Kit Featuring Integrated Latch

Description

The Kitronik Steady Hand Game Project Kit (with Latch) challenges users to navigate a loop along a wire without making contact. When the loop touches the wire, a buzzer sounds and a bright LED latches on to indicate contact, which stays lit until reset by a push button. This kit provides an enjoyable and educational electronics assembly experience suitable for KS3 students and hobbyists.

Features:

• Buzzer sounds when loop makes contact with wire.
• LED latched on until reset button is pressed.
• Bright LED to notify user clearly.
• Loud buzzer sound for feedback.

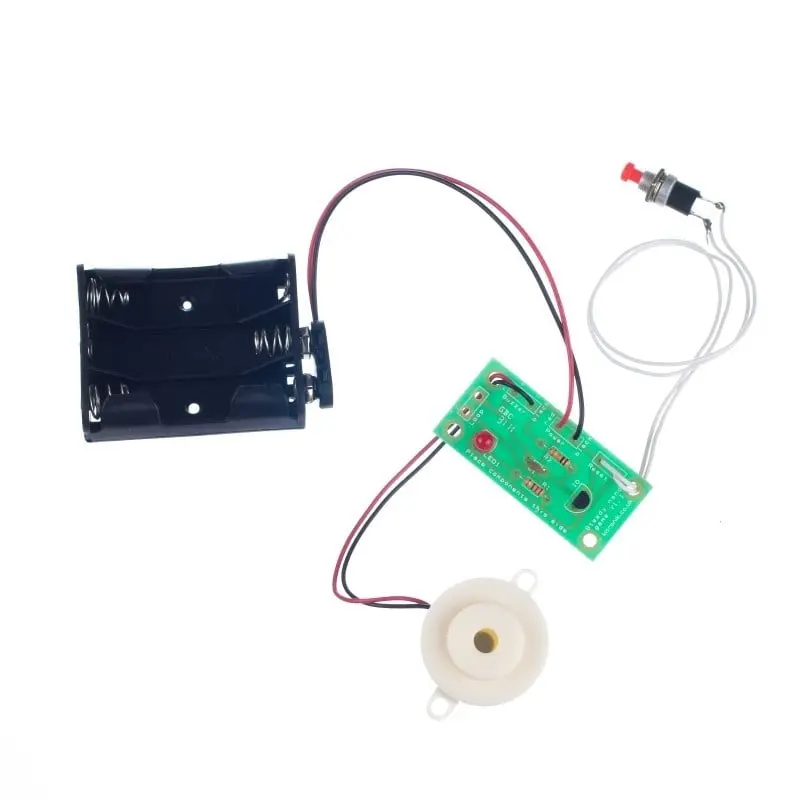

Kit Contents (per kit):

• 1 x PP3 Battery Clip Lead (Heavy Duty)
• 1 x 3xAA Battery Cage with Clip
• 1 m Extra Flexible Wire, Black
• 1 m Solid Core Cable
• 1 x Piezo Buzzer (with Drive)
• 1 x 220R Resistor
• 1 x 10K Resistor
• 1 x Capacitor, Ceramic, 50V, 10nF
• 1 x 2N5061 Thyristor
• 1 x Red 5mm Diffused LED – 275mCd
• 1 x Miniature Push to Make Switch, Red
• Black Heat Shrink 20cm length, 2.4mm
• 1 x Steady Hand PCB

Dimensions:

• PCB Length: 52mm
• PCB Width: 25mm

Required Tools and Materials:

• 3 x AA Batteries
• Pliers, Soldering Iron, Solder
• Wire Cutters and Wire Strippers

Additional Information:

In a pack of 24 kits, cables are supplied on reels, with remaining parts individually bagged. The kit is ideal for educational use and hobbyist electronics projects. Download essential and teaching resources are available.

Resources:

• Essential Information PDF
• Full Teaching Resources PDF
