Kitronik Premium Rear Bicycle Light Kit

Description

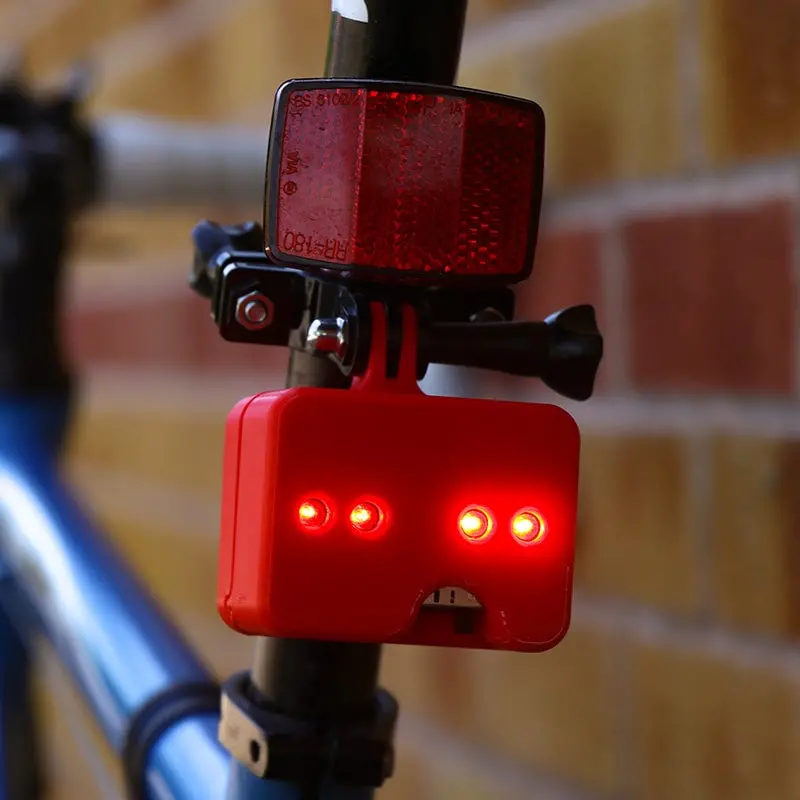

The Kitronik Deluxe Rear Bike Light Kit is an easy-to-build project designed to teach and use the popular 555 timer IC. It features four ultra-bright red LEDs that can operate in two modes: constant and flashing. The kit conforms to British Standards for vehicle road lighting (2005) in terms of brightness and flash rate, making it ideal for a rear bike light, night safety product or flashing eyes.

This kit includes essential electronic components mounted on a compact PCB perfect for custom enclosures. It runs efficiently on 3 x AAA batteries, with an estimated usage suitable for at least a month of daily 2-hour commutes with LEDs at full brightness.

Features:

• Easy to build rear bike light project conforming to British Standards (2005) for brightness and flashing rate
• Learn about the popular 555 timer IC
• Includes 4 bright 5mm red water-clear LEDs with 30° viewing angle and 9500mCd brightness
• Two operating modes: continuous and flashing
• Compact PCB design for easy enclosure integration

Contains:

• 4 x Red 5mm Water Clear LED – 30° – 9500mCd
• 1 x On-Off-On Slide Switch
• 1 x Electrolytic Capacitor, 50V, 1uF
• 1 x Ceramic Capacitor, 50V, 10nF
• 1 x 220K Resistor
• 2 x 1K Resistors
• 4 x 100R Resistors
• 1 x BAT41 Signal Diode
• 1 x 2N7000 N Channel FET
• 1 x 8 Pin IC Socket
• 1 x NE555 Timer IC
• 1 x Battery Holder for 3 x AAA batteries with pre-tinned leads
• 1 x Deluxe Rear Bike Light PCB

Dimensions:

• PCB Length: 52.6mm
• PCB Width: 37.6mm
• PCB Thickness: 1.6mm

Requires:

• Soldering Iron
• Solder
• Wire Cutters
• 3 x AAA Batteries

Resources:

• Teaching Notes PDF
• Essential Information PDF
