Description
The Kitronik High Power Amplifier Kit delivers up to 15W per channel of high-quality stereo sound, making it perfect for use with devices like MP3 players. This kit includes all necessary components to build a powerful amplifier with built-in power LED, on/off switch, and volume control. It comes complete with high-quality 20W full-range speakers and a 3.5mm jack cable, enabling easy connection to your audio devices. The kit requires soldering for assembly and allows you to design your own enclosure for customization.
Features:
- 15W per channel amplifier output
- Includes 3.5mm jack cable
- High quality 20W full-range speakers included
- Power LED, on/off switch, and volume control included
Contents:

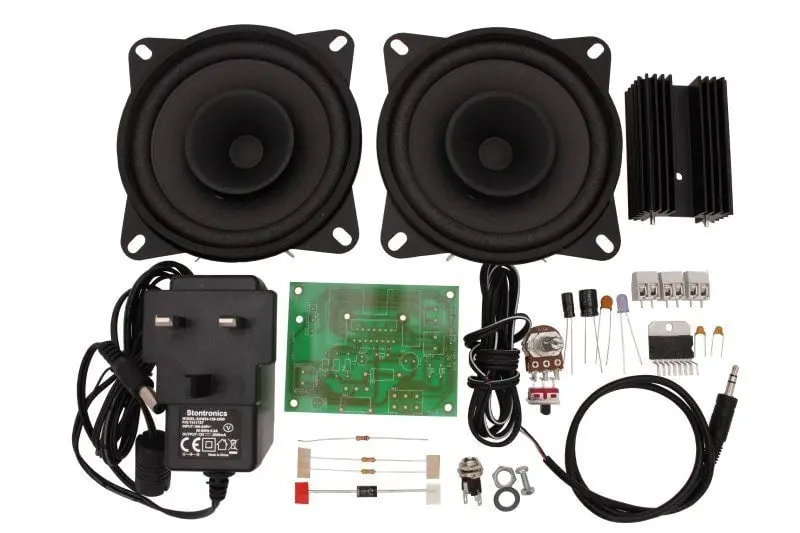

- TDA7297 15W+15W Dual Bridge Amplifier
- 2 x 20W 10cm Full Range Speakers
- 12V, 2A Wall Block Power Supply
- 6400BG Heatsink
- Pan Head M3 x10mm Machine Screw
- M3 Hex Full Width Nut, Zinc
- Dual Wipe Potentiometer, 10K
- Two 47K Resistors
- Blue 5mm Diffused LED – 500mCd
- 1K Resistor
- Electrolytic and Ceramic Capacitors of various ratings
- Miniature PCB SPDT High Current Slide Switch
- DC Power Socket, Panel Mounting, 2.1mm
- 3 x 2-Way Terminal Blocks
- 1N5400 Diode
- 1m Speaker Wire
- High Power Amp PCB
- Stereo Amp Cable
Specifications:
- Amplifier chip: TDA7297
- Output power: 15W per channel
- Speakers: 20W, 10cm full-range
- Power supply: 12V, 2A wall block (included)
- PCB dimensions: 77.5mm (L) x 59mm (W)
- Speakers dimensions: 100mm diameter, 49mm depth, fixing points 116.5mm across
- Total kit weight (board, speakers & cable): approx. 780g; Power supply: 170g; Total: 950g
- Operating voltage range of amplifier chip: 6V to 18V
Notes:
- The heat sink can become hot during prolonged use at high volume and should be mounted in a well-ventilated enclosure.
- This product is supplied with a UK mains plug designed for 230V, 50Hz supply.
- Kit requires soldering and assembly.
