Icon 2.5 Series RR Coilover Kit for 2021–2023 Ford Bronco – Front Suspension Upgrade

Description

Fits:

2021-2023 Ford Bronco

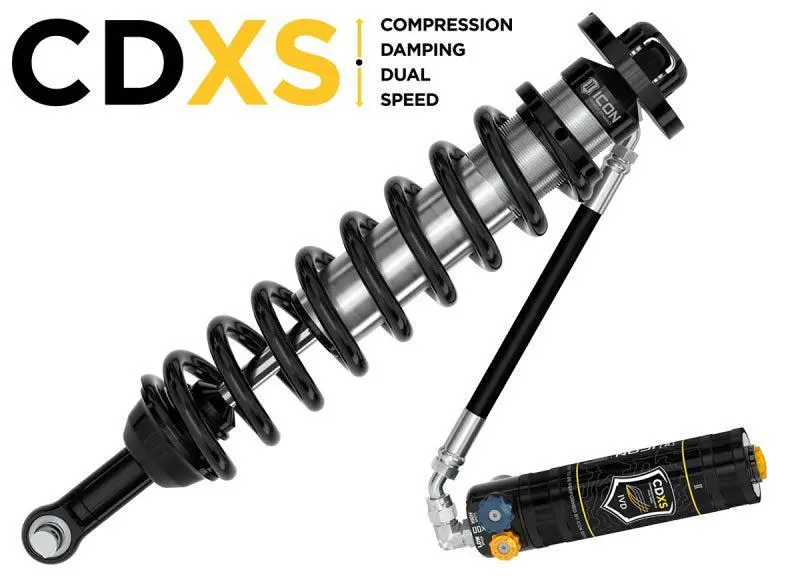

Upgrade your Ford Bronco’s front suspension with the ICON V.S. 2.5 Series remote reservoir coilover shocks, designed to deliver superior off-road performance and ride quality. Engineered specifically for 2021-2023 Ford Broncos, these adjustable coilovers provide 3-4” of lift on non-Sasquatch models and 2-3” on Sasquatch-equipped Broncos, allowing for larger, more aggressive tires and improved ground clearance.

Features & Benefits:

• Increased Wheel Travel: Up to 11.5” for enhanced suspension articulation and comfort

• Vehicle-Specific Tuning: Optimized shock length and valving for the Bronco’s front suspension

• Remote Reservoirs: Improve heat dissipation and oil volume to reduce shock fade during hard use

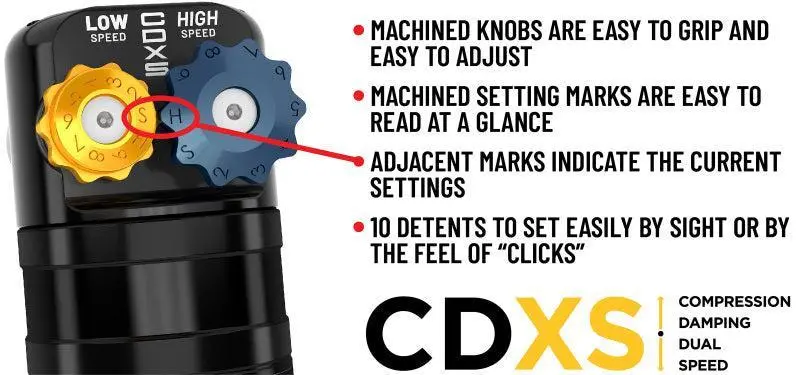

• ICON CDXS Technology: Independent adjustment of high-speed and low-speed compression for customizable handling

• Adjustable Lift: 3-4” lift for non-Sasquatch, 2-3” for Sasquatch Broncos

• Premium Components: CNC machined 6061 aircraft-grade aluminum, corrosion-resistant CAD plated shock bodies, and 7/8” shafts

• Durability: FK rod end bearings, high-strength CNC machined lower bar pin, fully rebuildable and re-tunable

• 100% Bolt-On Installation: No drilling, cutting, or welding required

Wheel & Tire Fitment:

• With Sasquatch Package: OEM wheels fit; ICON Alloys wheels recommended:

  • 17×8.5” w/ 4.75” backspace / 0mm offset

  • 18×9” w/ 5.00” backspace / 0mm offset

  • 20×9” w/ 5.00” backspace / 0mm offset

• Without Sasquatch Package:

  • 17×8.5” w/ 5.75” backspace / 25mm offset

  • 18×9” w/ 6.00” backspace / 25mm offset

• Tires: Recommended 35” x 12.50” (37” tires require bump stop spacers and possible trimming/modifications)

Important Notes:

• Factory upper control arms (UCA) may need replacement for lifts above 2.5” (see Application Note #24)

• Recommended use of ICON upper control arms with Delta Joint Pro for optimal fit and durability

• Coilovers fully serviceable and rebuildable

• Not compatible with Bronco Raptor models

• Fitment testing based on ICON and OEM steering components; some aftermarket steering parts may not fit

• Bronco Everglades lift range: 1.5-2.5” over stock

• Additional crash bars recommended for non-Sasquatch models running larger tires (see Application Notes #138, #139)
