ICON 2.5 Series Rear Coilover Kit for 2021–2023 Ford Bronco | Part #48710X

Description

Fits:

2021-2023 Ford Bronco

Upgrade your Ford Bronco’s rear suspension with the ICON V.S. 2.5 Series remote reservoir coilover shocks, engineered for superior off-road performance and ride comfort. Designed specifically for 2021-2023 4-door Broncos, these adjustable coilovers provide 2-3” of rear lift on non-Sasquatch models and 1.25-2.25” on Sasquatch-equipped Broncos. Perfect for running larger tires while maintaining excellent suspension travel and control.

Features & Benefits:

• Increased Wheel Travel: Up to 14” for enhanced suspension articulation and ride quality

• Vehicle-Specific Tuning: Optimized shock length and valving for the Bronco’s rear suspension

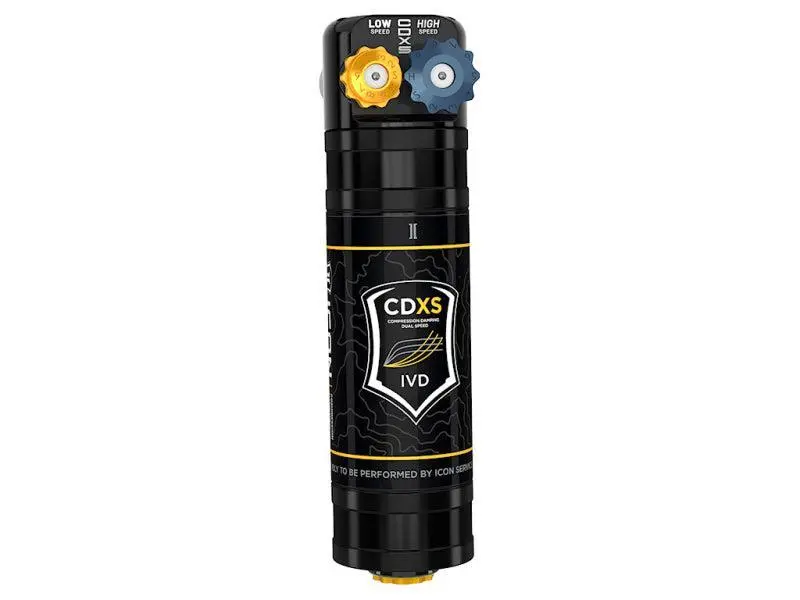

• Remote Reservoirs: Increased oil volume and improved heat dissipation to reduce damper fade

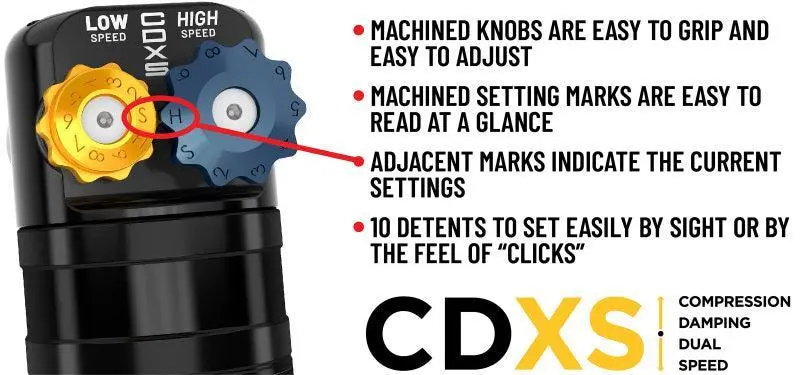

• ICON CDXS Technology: Independent adjustment of high-speed and low-speed compression for fine-tuned handling

• Adjustable Lift: 2-3” lift on non-Sasquatch, 1.25-2.25” on Sasquatch Broncos

• Unique Triple Rate Coil Springs: Softer initial spring rate for comfort with progressive ramp-up to resist bottoming out

• Premium Components: CNC machined 6061 aircraft-grade aluminum, corrosion-resistant CAD plated shock bodies, and 7/8” diameter shafts

• Durability: FK rod end bearings for longevity and minimal deflection, fully rebuildable and re-tunable

• 100% Bolt-On Installation: No drilling, cutting, or welding required

Wheel & Tire Fitment:

• With Sasquatch Package: OEM wheels fit; recommended ICON Alloys wheels:

  • 17×8.5” w/ 4.75” backspace / 0mm offset

  • 18×9” w/ 5.00” backspace / 0mm offset

  • 20×9” w/ 5.00” backspace / 0mm offset

• Without Sasquatch Package:

  • 17×8.5” w/ 5.75” backspace / 25mm offset

  • 18×9” w/ 6.00” backspace / 25mm offset

• Tires: Recommended 35” x 12.50” (37” tires require bump stop spacers)

Important Notes:

• Rear coilovers mount shaft-up with reservoir hose routed along rear lower links; hose bracket options available for OE or ICON links

• 2-door Broncos will sit approximately 0.5” taller than 4-door models

• Reservoir brackets may interfere with some aftermarket step or rock slider mounts—modifications may be necessary

• Recommended use of up travel limiters when running 37” tires (Part #611074)

• Compatible with factory or ICON tubular lower links (see application notes)

• Triple rate coil springs are optimized for near-stock vehicle weight; heavier setups may require part #48711X

• Not compatible with Bronco Raptor models

• Fully serviceable coilovers for long-term use and tuning flexibility
