Description

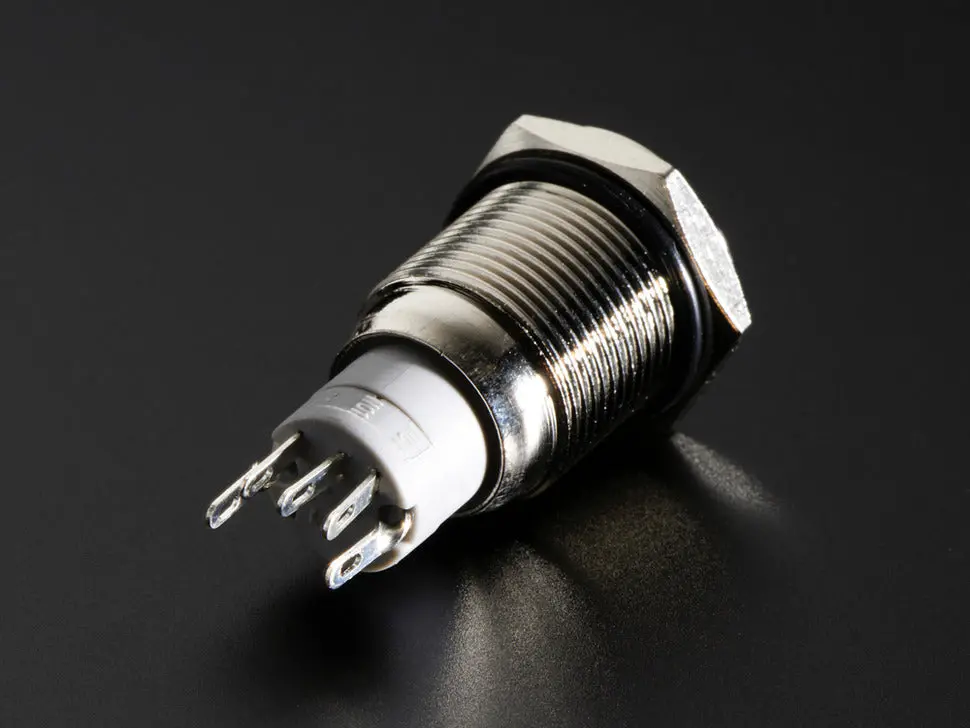

These chrome-plated metal buttons are rugged and stylish, perfect for various electronics projects. Simply drill a 16mm hole into any material up to 1/2″ thick to install. The button is equipped with a rubber gasket to keep water out of the enclosure. The front features a flat metal actuator surrounded by a blue plastic LED ring.
The back has 3 contacts for the button (common, normally-open, and normally-closed) and 2 terminals for the blue LED ring (+ and -). The LED operates from 3 to 6V with a built-in resistor; for higher voltages (12V or 24V), a 470 ohm resistor in series is recommended to keep the LED current around 20mA.
This is a momentary push button: when pressed, the ‘normally-open’ contact shorts to the common contact, opening again when released. The switch and LED are independently wired for flexible control.
- Drill hole diameter: 16mm
- Switch rating: 3A / 250VDC
- Switch contacts: 1 NO, 1 NC
- Material: Chrome plated brass
- Contact resistance: < 50 mOhm
- Insulation resistance: > 1000 Mohm
- Operating temperature: -20°C to +55°C
- Mechanical life: > 500,000 cycles
- Electrical life: > 50,000 cycles
- Panel thickness compatibility: 1-13mm
- Operating pressure: 1.5 – 2.5 N
- Operating stroke: 2mm
- LED rated voltage: 6V
See dimensional and circuit diagrams
