Compact 8-Position Rotary Selector Switch (SP8T)

Description

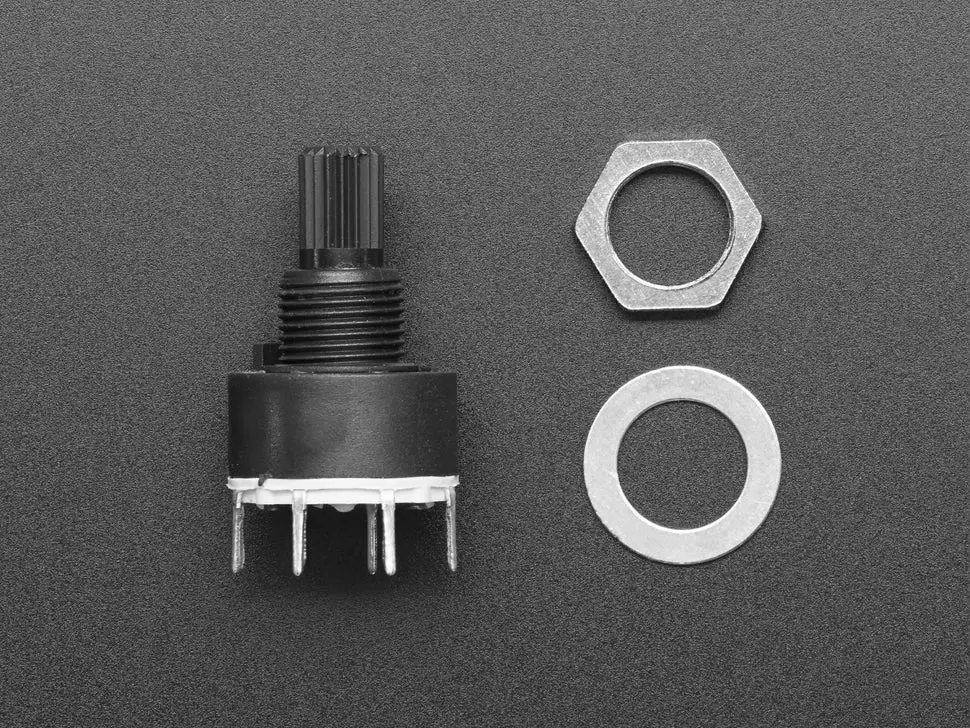

When you need a lot of options, you need a Mini 8-Way Rotary Selector Switch. This is a single-pole to 8-throw switch. As you rotate the knob, the middle pin makes contact with each of the outer pins sequentially. The rotary switch is compact and easy to use, ideal for panel mounting with the included washer and hex nut. It features a T18-size shaft, compatible with T18 knobs for easier turning.

• Single-pole to 8-throw rotary switch
• Compact size, easy panel mount
• Includes washer and hex nut
• T18 size shaft for compatible knobs
• Product dimensions: 25.2mm x 16.2mm x 16.2mm (1.0″ x 0.6″ x 0.6″)
• Weight: 4.7g (0.2oz)

Refer to the diagram and datasheet for detailed technical information.
