Description

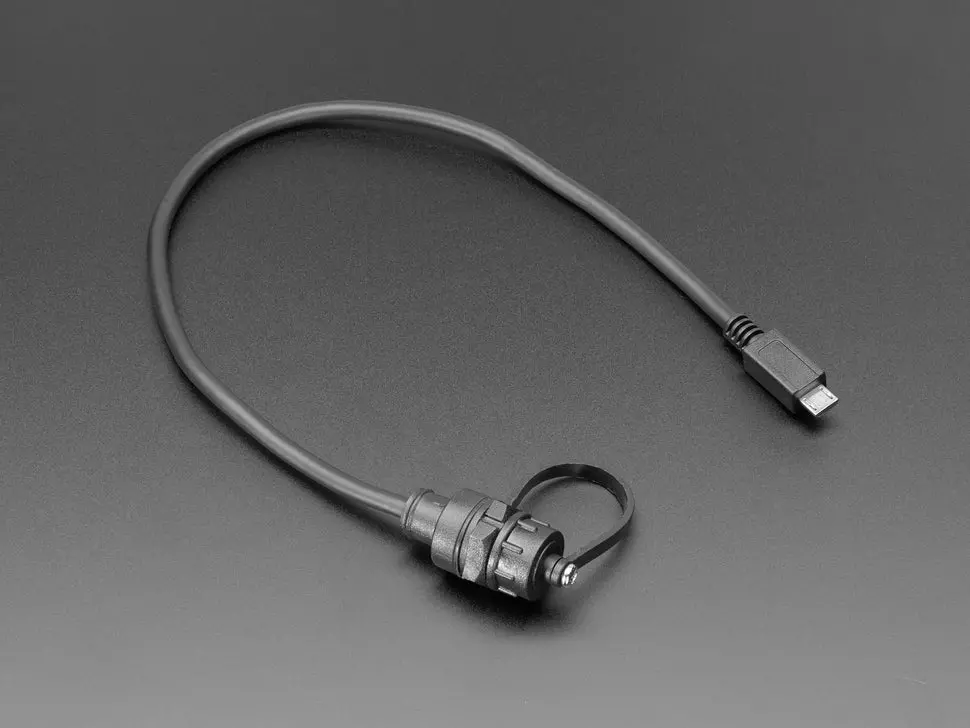

If you need to add a compact panel-mount connection but don’t have the time or ability to cut a custom oval or square hole, this USB Micro B Small Round Panel Mount Extension Cable is the easiest and fastest way to panel-ify your project. The adapter can fit holes 12mm to 18mm, so you can drill in your wood, plastic, or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Ta-da! Now you have a USB micro B jack and plug for connecting any cable.
It’s designed to easily attach to a panel up to 13mm thick (or 0.5″), or as thin as a few mm. Perfect for adding a USB micro B port to your project enclosure! We like this plug in particular for its solid body, small aperture, and ‘forgiving’ plastic lip that hides the drill hole. It also comes with a cute protective cap that can be used to protect the port, or cut off with scissors if you prefer.
Features:
- Fits panel holes from 12mm to 18mm diameter
- Easy installation with plastic nut
- Supports panels up to 13mm thick
- Includes protective cap for the port
- Solid construction with small aperture for neat installation
Technical Details and Diagrams:
- Diagram 1 (PDF)
- Diagram 2 (JPEG)
