Description

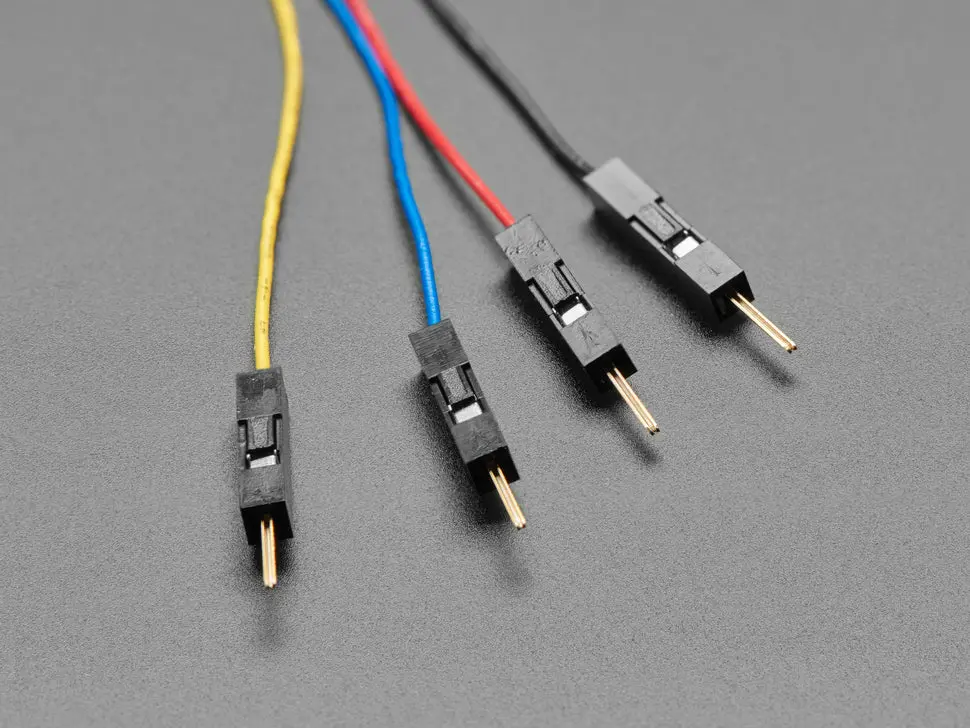

This 4-wire cable is approximately 150mm (6″) long, featuring JST-SH female 4-pin connectors on one end and premium Dupont male headers on the other.
Compared to the larger JST-PH connectors, JST-SH connectors have a 1mm pitch versus 2mm pitch, providing a compact yet latchable feel that is still easy to insert and remove.
This cable is compatible with Qwiic boards, allowing easy connection of sensors and drivers to boards with 0.1″ socket headers or solderless breadboards. It can also be directly soldered to headers if desired.
Wiring color code when used with Qwiic:
- Red – 3.3VDC Power
- Black – Ground
- Blue – I2C SDA Data
- Yellow – I2C SCL Clock
For more information on JST SH connectors, visit the JST website.
Features:
- 4-wire cable, 150mm length
- JST-SH female 4-pin connectors on one end
- Premium Dupont male headers on the other end
- 1mm pitch connectors with latching
- Compatible with Qwiic and STEMMA QT compatible devices
- Gold-plated header contacts for improved conductivity and durability
