Description
Fits:
2021-2025 Ford Bronco

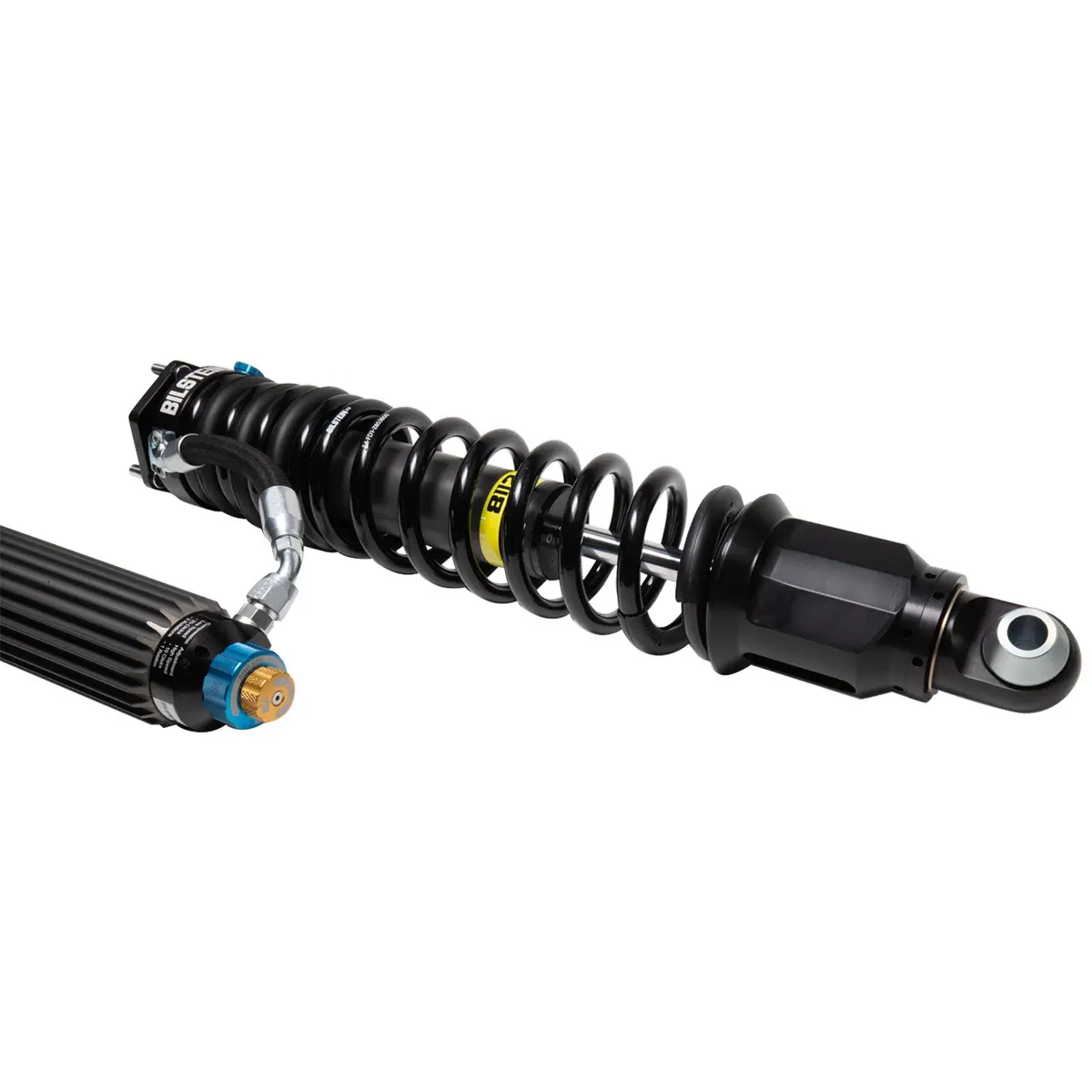

The Bilstein B8 8112 (ZoneControl CR DSA+) is a premium, direct-fit 3-way adjustable coilover engineered for light trucks and SUVs. Designed for ultimate performance both on and off-road, it features position-sensitive damping paired with Dual Speed Adjustability, delivering unmatched ride control and comfort.
At the heart of the system is a triple piston design offering 3-stage compression and 2-stage rebound valving for precise control through all phases of suspension travel. Click-adjuster knobs provide easy tuning of high- and low-speed compression, while the internal JCO hydraulic bump stop protects against harsh bottom-outs. The threaded spring seat allows ride height adjustment from 0–3 inches (depending on vehicle application).
A remote-mounted, finned aluminum reservoir enhances heat dissipation during demanding use, and all components are built from high-strength materials to ensure long-lasting performance.
Features:
-
Triple piston design with position-sensitive damping
-
3-stage compression / 2-stage rebound valving
-
Click-adjustable high- and low-speed compression settings
-
JCO internal hydraulic bump stop for added protection
-
0–3” ride height adjustability (application dependent)
-
Remote finned aluminum reservoir with anodized chassis mount
-
Smooth-body 2.65″ aluminum construction
-
Premium EVO Grey damper finish with black springs
Specifications:
-
Collapsed Length: 18.40 in (467.1 mm)
-
Extended Length: 26.60 in (674.6 mm)
-
Body Diameter: 2.65 in (60 mm ID)
-
Body Material: Aluminum
-
Reservoir: Yes – remote finned aluminum
-
Spring Seat: Threaded, included
-
Finish: Dampers – EVO Grey; Springs – Black
-
Adjustable Damping: High/low-speed compression + internal bump stop (JCO)
Engineered to provide maximum control and comfort, the Bilstein B8 8112 DSA+ coilover is your go-to solution for serious suspension performance on any terrain.
Installation Instructions
