Adafruit RFM69HCW 433MHz Radio FeatherWing for Wireless Communication

Description

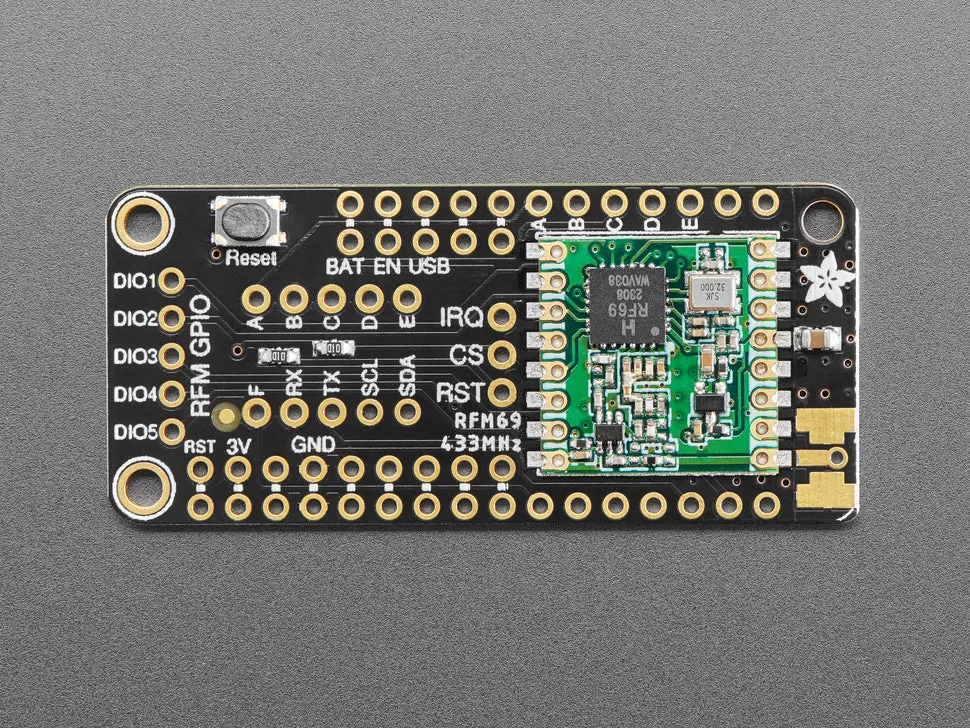

Add short-hop wireless to your Feather with the Adafruit Radio FeatherWing featuring the RFM69HCW 433MHz RadioFruit module. This add-on board enables packetized FSK/GFSK/MSK/GMSK/OOK radio communication at 433 MHz on the license-free ISM band, suitable for Europe ITU 1 and amateur use depending on local regulations.

The RFM69HCW module is a +20dBm FSK packet radio with built-in encryption and auto-retransmit. It offers a range of approximately 350 meters line-of-sight with simple wire antennas, and up to 5 kilometers with directional antennas and proper tuning. It allows multipoint networks with unique node addresses.

• SX1231 based module with SPI interface
• Compatible with Arduino via ready-to-go libraries
• Power output selectable in software from +13 to +20 dBm (up to 100 mW)
• Current draw ranges from 50mA (+13 dBm) to 150mA (+20 dBm) during transmission
• Encrypted packet engine with AES-128 support
• Works with Feather ESP8266, Teensy 3 Feather, WICED Feather, Feather 32u4, and Feather M0 series with some wiring
• Includes headers; soldering required to attach headers and antenna wire

This board measures 51.0mm x 22.8mm x 3.7mm and weighs 4.6g. It is RoHS 2 compliant.

Fully open-source design files, EagleCAD PCB files, Fritzing, schematics, and datasheets are available in the product tutorial online.
