Description

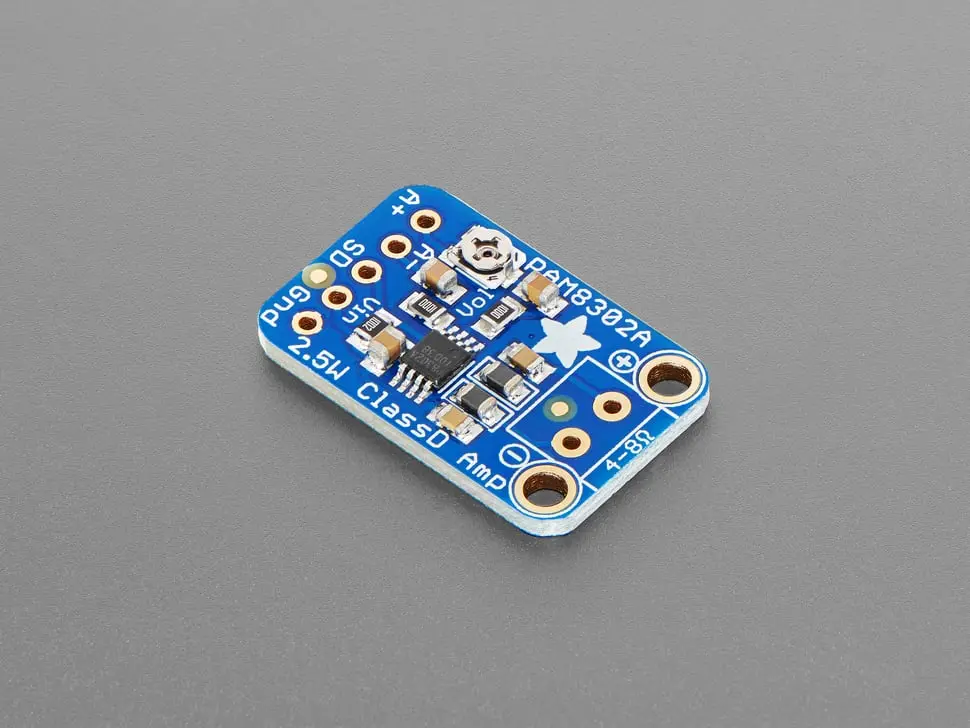

This super small mono amplifier is surprisingly powerful – able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0V-5.5VDC. Since the amp is a class D, it is very efficient (over 90% efficient when driving an 8Ω speaker at over half a Watt), making it perfect for portable and battery-powered projects.
It has built-in thermal and over-current protection but runs cool under normal operation. There’s even a volume trim pot so you can adjust the volume on the board down from the default 24dB gain. This board is a welcome upgrade to basic “LM386” amps!
The A+ and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully ‘differential’ – if you don’t have differential outputs, simply tie the Audio- pin to ground. The output is “Bridge Tied” – that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then ‘averaged out’ by the speaker coil – the high frequencies are not heard. All the above means that you can’t connect the output into another amplifier; it should drive the speakers directly.
The product comes with a fully assembled and tested breakout board. Included are a header to plug it into a breadboard and a 3.5mm screw-terminal block so you can easily attach or detach your speaker. You will be ready to rock in 15 minutes! Speaker is not included, use any 4 ohm or greater impedance speaker.
- Output Power: 2.5W at 4Ω, 10% THD; 1.5W at 8Ω, 10% THD, with 5.5V Supply
- 50dB PSRR at 1KHz
- Filterless design, with ferrite bead + capacitors on output
- Fixed 24dB gain with onboard trim potentiometer for adjusting input volume
- Thermal and short-circuit/over-current protection
- Low current draw: 4mA quiescent and 0.5mA in shutdown (due to pullup resistor on SD pin)
Note: The terminal block included with your product may be blue or black.
