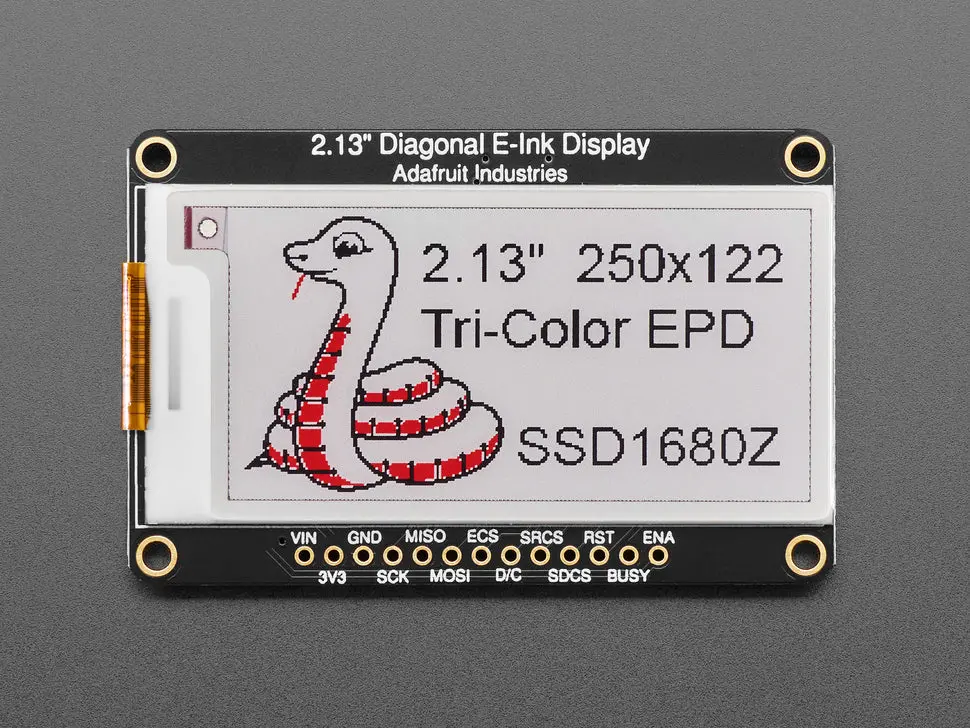

Adafruit 2.13″ Tri-Color E-Ink Display – 250×122 Resolution with SRAM and SSD1680Z Controller

Description

Easy e-paper display breakout designed for microcontrollers, featuring a 2.13″ tri-color (red, black, and white) eInk display with 250×122 pixels.

This display uses the SSD1680Z chipset and includes built-in SRAM, allowing you to store the frame buffer on the chip and reduce microcontroller memory usage.

• 2.13″ tri-color eInk display (red, black, white) with 250×122 pixels
• Built-in SRAM chip for efficient frame buffering using SPI with minimal pin use
• Onboard 3.3V regulator with Enable pin for ultra-low power shutdown of SRAM, MicroSD, and display
• Includes a MicroSD socket for image and file storage
• 3 or 5V logic level compatible
• Comes assembled and tested with some header; soldering required to attach header
• Uses SSD1680Z chipset; make sure firmware supports this for correct display alignment
• Updated with EYESPI connector for easier cabling

Compatible with Adafruit CircuitPython and Arduino libraries, providing a familiar Adafruit_GFX interface.

Perfect for projects that require a high-contrast, daylight-readable display with static image retention and low power consumption.
