Description

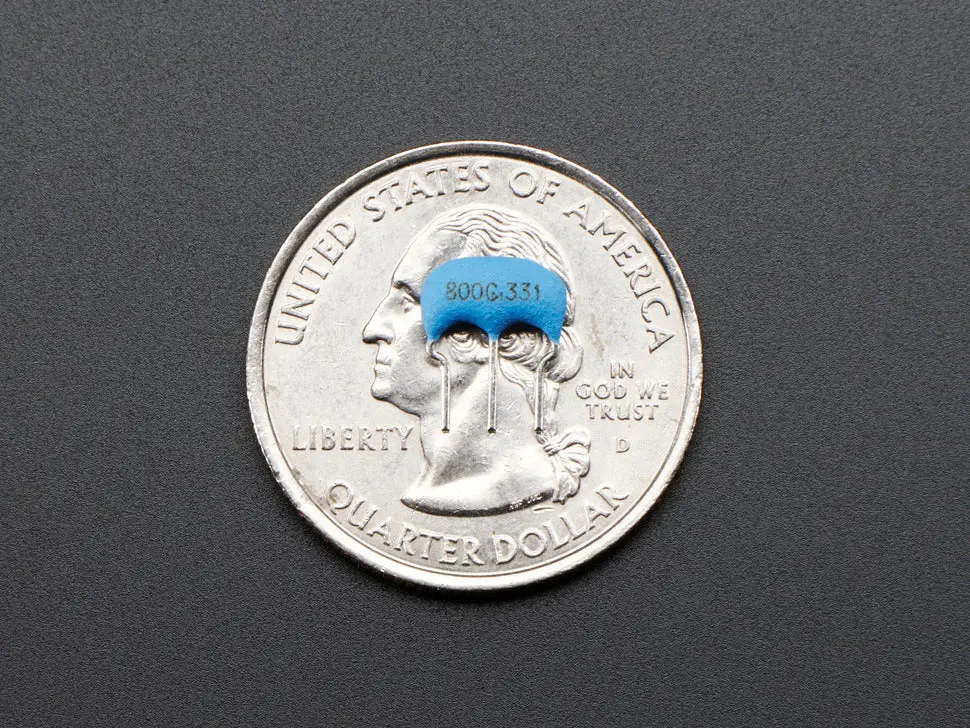

Keep your microcontroller tickin’ with a breadboard-friendly 8 MHz Ceramic Resonator / Oscillator featuring 0.1″ pin spacing and 0.5% accuracy, ideal for everyday electronics and microcontroller applications such as UART or baud-rate generation.
This three-pin resonator has two outer pins for XTAL-in and XTAL-out connections, and the inner pin connects to ground. The symmetric package allows flexibility in pin usage. It is not suited for ultra-high precision needs such as USB timing, long-term time-keeping, or RF/PLL/VCO driving, where a crystal or temperature-compensated oscillator may be required.
- Pin spacing: 0.1″ (2.54mm), breadboard compatible
- Accuracy: ±0.5%
- Total Dimensions: 8mm x 9mm x 2mm (0.3″ x 0.4″ x 0.08″)
- Pin Length: 4.3mm (0.17″)
- Three-pin design: two for crystal connections, one for ground
- RoHS 2 compliant
Refer to the datasheet for detailed specifications.
