Description

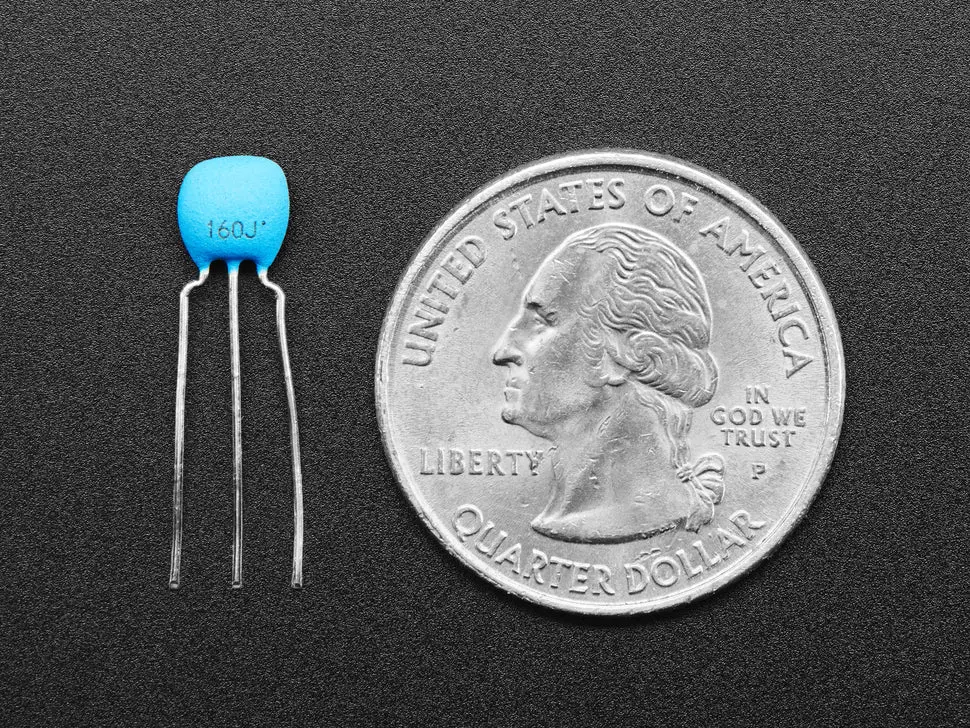

Keep your microcontroller ticking with this 16 MHz Ceramic Resonator / Oscillator, perfect for everyday electronics and microcontroller projects. This breadboard-friendly device features 0.1″ pin spacing and integrates the stability capacitors internally, providing approximately 0.5% accuracy—ideal for UART and baud-rate generation.
This resonator is a great match for Arduino-compatible boards, matching the clock speed of the Arduino Uno. It connects easily by connecting the two outer pins to XTAL-in and XTAL-out and the middle pin to ground. Note that the ceramic oscillator may come in either blue or brown, both performing identically.
Features:
- 16 MHz frequency
- Three-pin ceramic resonator with integral capacitors
- Breadboard-friendly 0.1″ pin spacing
- 0.5% frequency accuracy
- Compact size: 15mm x 6mm x 3mm
- Pin length: 7.3mm
- Suitable for Arduino Uno clock speed
- Available in blue or brown color (functionally identical)
Technical Specifications:
- Dimensions: 15mm x 6mm x 3mm
- Pin Length: 7.3mm
- Package: 3-pin ceramic resonator
- Pin spacing: 0.1″
For detailed technical information, refer to the Blue Ceramic Resonator Datasheet or the Brown Ceramic Resonator Datasheet.
