Description
This LED illuminated arcade pushbutton is designed to fit in standard 30mm drilled holes, featuring a built-in LED that can be controlled independently from the switch action for indication or aesthetic purposes.

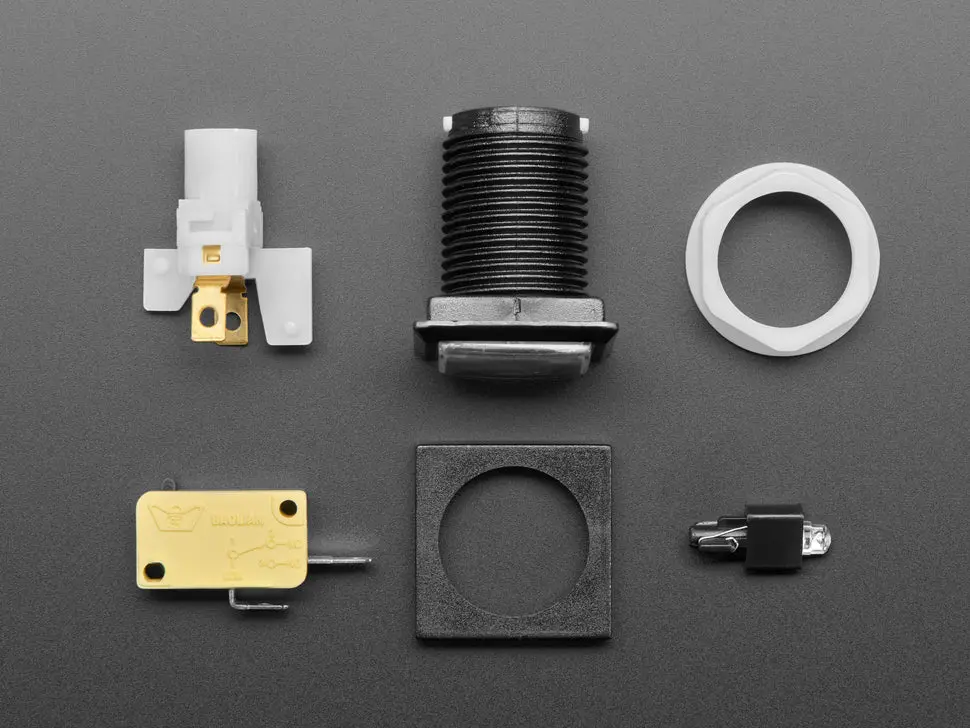

The pushbutton has a black plastic body and includes a lamp holder originally designed for incandescent lamps but easily adaptable for LED usage by wrapping the LED legs around the holder. It comes with a clear white LED, with the suggestion to replace it with a diffused LED of your preferred color for better backlighting effects. Additionally, the pushbutton can be disassembled to place an image under the clear cover for custom backlighting.
Equipped with a normally-open micro-switch, the switch is clicky and gives tactile feedback when actuated. The micro-switch can be snapped in or removed easily for LED changes.
Features:
- Fits standard 30mm arcade button holes
- Built-in LED illuminated lamp holder
- Includes clear white LED (replaceable)
- Normally-open clicky micro-switch included
- Disassemblable to insert custom backlighting images
Technical Details:
- LED forward voltage: ~3.5V (white LED included)
- Requires series resistor (recommend starting with 1 kOhm)
- Comes with clear white LED instead of previous blue LED (since February 3rd, 2021)
See the Pushbutton Datasheet and Switch Datasheet for detailed specifications.
Check out the Make It Switch guide for microcontroller integration and switch reading techniques.
