Description

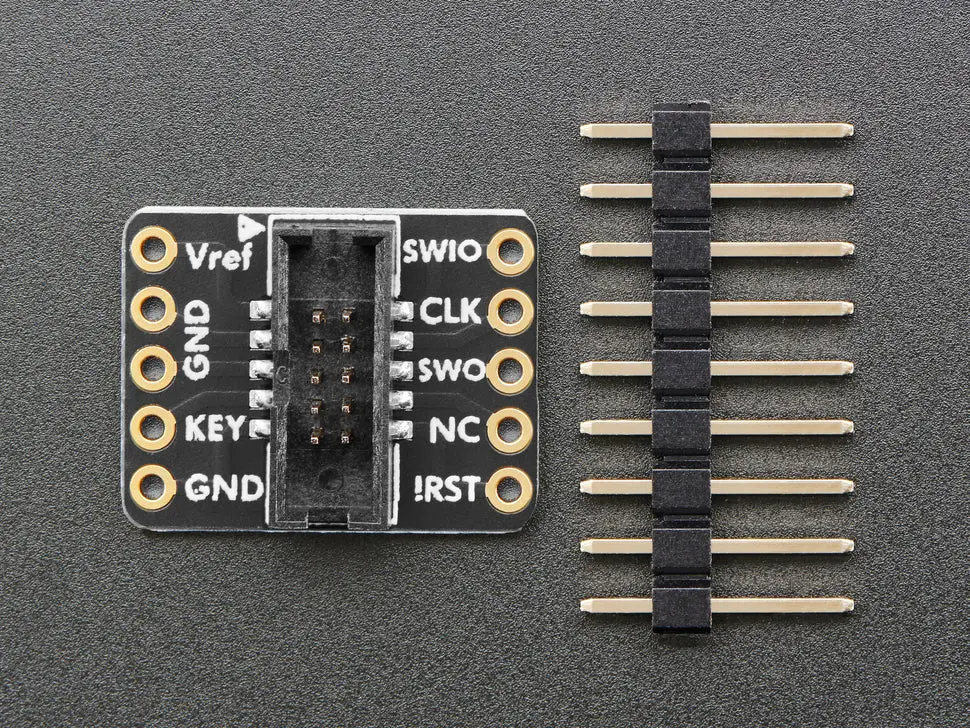

This adapter board is designed to facilitate the use of ARM development boards that employ slim 2×5 (0.05″/1.27mm pitch) SWD cables for programming. It is especially useful for connecting tools like the JTAGulator, STLink, or SEGGER J-Link with small boards utilizing the 10-pin SWD programming connector, typically Cortex M0 or M3 processors.
The board comes without cables and consists mainly of the breakout board and header pins if required. It offers a simple solution for using JTAG/SWD debugging with compact development boards. For convenience, the 10-pin 2×5 Socket-Socket 1.27mm IDC SWD cable is sold separately here. A ‘classic’ JTAG to SWD converter board is also available here.
Features:
- Compact size: 14mm x 18mm x 7mm (0.55″ x 0.7″ x 0.3″)
- Lightweight: 1g
- Easily connects to ARM dev boards with 2×5 SWD connectors
- Includes headers for versatile usage
- Revamped silkscreen design as of October 2022
- Compatible with popular debugging tools like JTAGulator, STLink, SEGGER J-Link
Technical Details:
- Dimensions: 14mm x 18mm x 7mm / 0.55″ x 0.7″ x 0.3″
- Weight: 1 gram
- EagleCAD PCB Files available on GitHub
- Fritzing object in Adafruit Fritzing library
