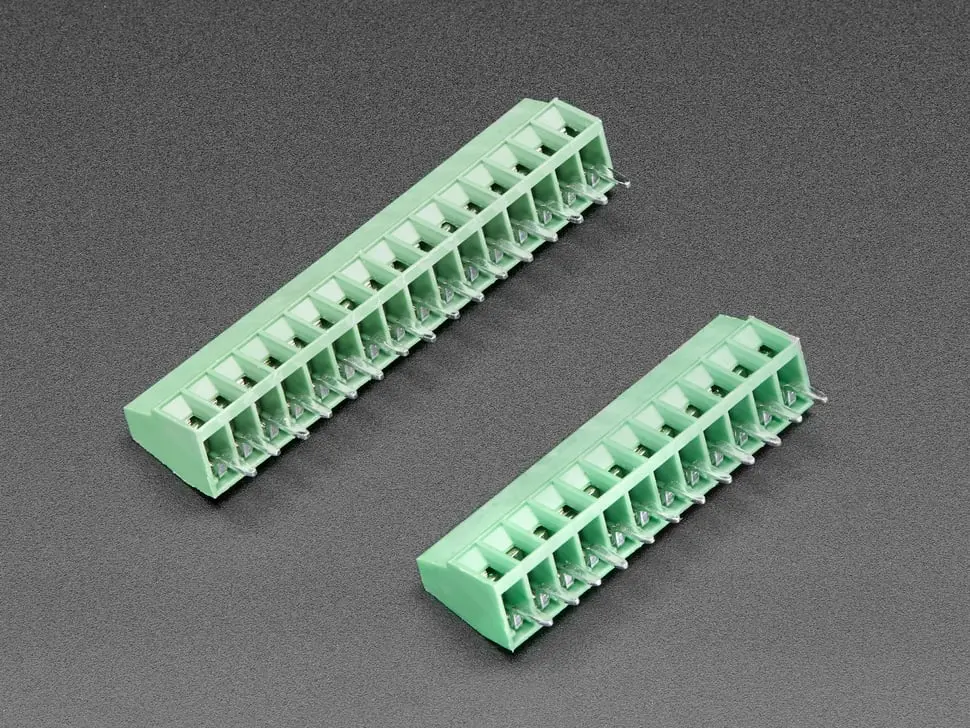

0.1-Inch Pitch Terminal Block Kit for Adafruit Feather Boards

Description

We’ve got a simple and highly functional solution to wiring your Adafruit Feather board! These 0.1″ Pitch Terminal Blocks are exactly the right size to fit your Feather board or FeatherWing. They are great news since nothing makes a project harder to maintain than a lot of loose wiring. Perfect when you don’t need a full Terminal Block FeatherWing.

These terminal blocks are big enough for a range of wire gauges: 20-30AWG solid or stranded. They are easy to adjust with a screwdriver but not too chunky, so they won’t take up too much space on your Feather. Just solder them on top or bottom and off you go!

Feather not included

Features:

• Fits Adafruit Feather boards and FeatherWings
• 0.1″ pitch terminal block compatible with 20-30 AWG wires
• Easy adjustment with screwdriver
• Compact size to save space
• Available in 12-pin and 16-pin sizes

Technical Details:

• Datasheet: Kaweei KF120-XP
• 16-Pin Terminal Block Dimensions: 41.1mm x 6.2mm x 8.6mm (1.6″ x 0.2″ x 0.3″)
• 16-Pin Terminal Block Weight: 3.9g (0.1oz)
• 12-Pin Terminal Block Dimensions: 31.1mm x 6.2mm x 8.6mm (1.2″ x 0.2″ x 0.3″)
• 12-Pin Terminal Block Weight: 3.1g (0.1oz)
