Description
By popular demand, we now have rugged metal buttons with a full color RGB LED ring light! These chrome-plated metal buttons are rugged, but certainly not lacking in flair.

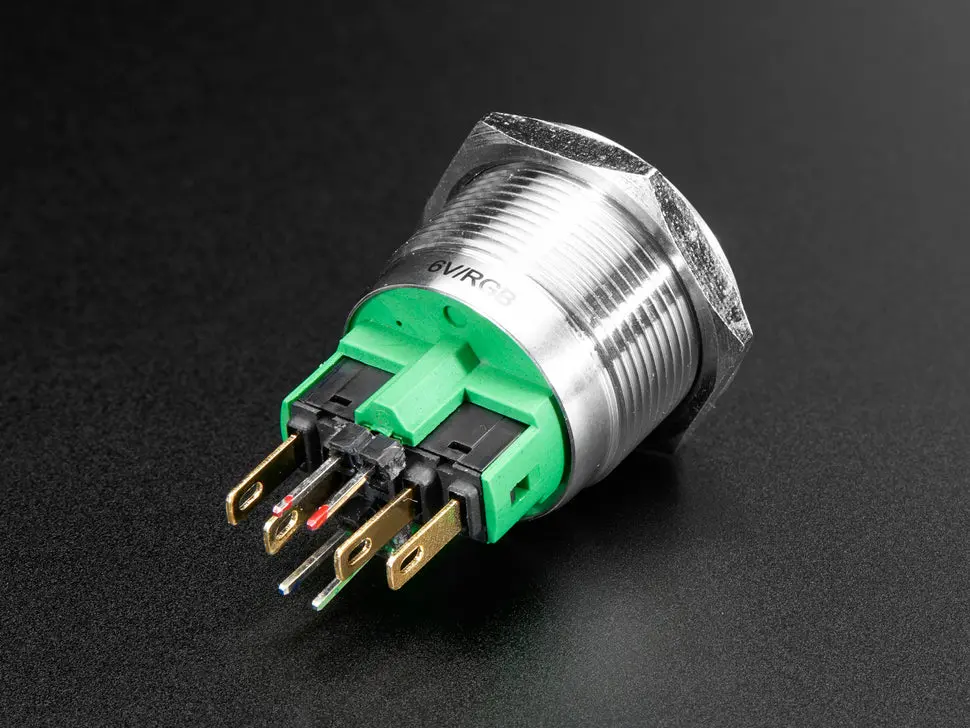

This is a 22mm Momentary version of the RGB pushbutton. Simply drill a 22mm hole into any material up to 1/4″ thick and you can fit these in place – there’s even a rubber gasket to keep water out of the enclosure. On the front of the button is a flat metal actuator, surrounded by a plastic RGB LED ring. On the back there are 4 metal contacts for the RGB LED ring (one anode and 3 cathodes for red, green, and blue) and 4 spade contacts for the switches.
To use the RGB LED: Power the anode at 3-6V and light up the red, green, and blue LEDs by pulling their designated contacts to ground as you desire – there’s a built-in resistor! For higher voltages (e.g. 12V or 24V), add a 1K ohm resistor in series with the LED cathodes to keep the current at ~20mA. You can PWM the RGB pins to create any color.
To use the switches: There are two electrically separate SPST switches inside. The inner spade contacts are normally-closed (open when pressed). The outer spade contacts are normally-open (closed when pressed).
The LED and switches are electrically separate, allowing microcontroller control and reading.
Don’t forget to pick up Arcade Button Quick-Connect Wire Pairs – 0.11″ (10 pack)!
- Drill hole diameter: 22mm
- Switch current: recommended max 1A / 24VDC
- Switch contacts: 2 sets (one normally open, one normally closed)
- Material: Chrome plated brass
- Contact resistance: < 50 mOhm
- Insulation resistance: > 1000 MOhm
- Temperature range: -20°C to +55°C
- Mechanical life: > 500,000 cycles
- Electrical life: > 50,000 cycles
- Panel thickness: 1-7mm
- Operating pressure: 1.5 – 2.5 N
- Operating stroke: 2mm
- LED rated voltage: 6V
