Description

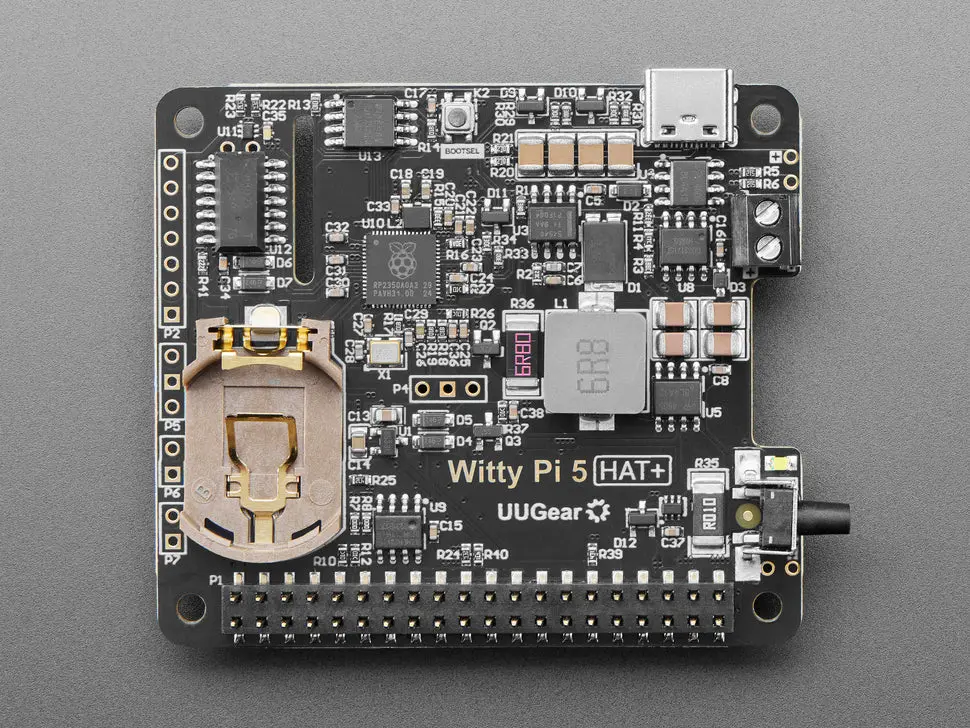

Witty Pi 5 HAT+ is a sophisticated add-on board for Raspberry Pi that integrates a high-precision real-time clock (RTC) and advanced power management features.
This fifth-generation Witty Pi board follows the Raspberry Pi HAT+ specification and supports all Raspberry Pi models with a 40-pin GPIO header, enabling versatile compatibility.
As a Mode 1 Power HAT+, Witty Pi 5 supplies up to 5A current to the Raspberry Pi and its peripherals, optimizing performance and power usage.
Key hardware features include:
- High-precision RTC with ±3.8 to 5 ppm accuracy
- Dedicated temperature sensor with 0.0625°C resolution
- Onboard DC/DC converter supporting up to 30V DC input
- Two ideal diodes for VIN and VUSB isolation
- RP2350 microcontroller with 16MB external flash memory
- ID EEPROM complying with HAT+ specification
Witty Pi 5 facilitates developer customization with fully open-source firmware and software available on GitHub. Firmware updates are straightforward via USB boot mode.
The board emulates both a USB flash drive and USB serial device, allowing easy configuration editing, log viewing, and real-time monitoring to simplify development and debugging.
Note: Coin cell battery (CR2032) is not included for easier shipping but can be purchased separately.
User Manual (PDF)
