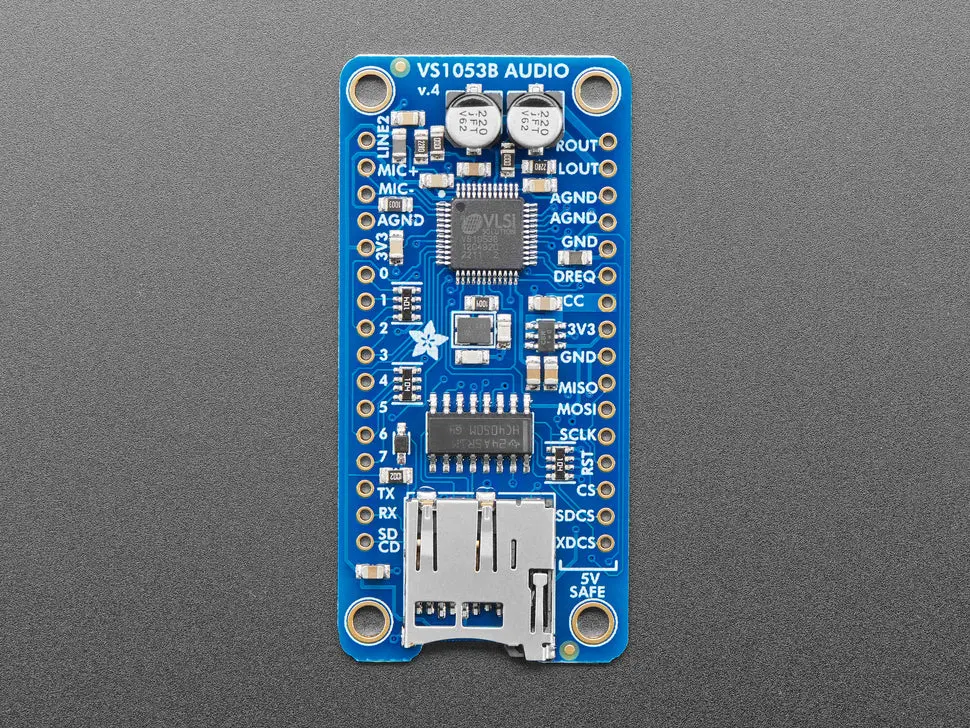

VS1053 Audio Codec Breakout Board with MicroSD Support — Play and Record MP3, WAV, MIDI & OGG Files — Version 4.1

Description

This breakout board is the ultimate companion for the VLSI VS1053B DSP codec chip. It can decode audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM), and can record PCM (WAV) and compressed Ogg Vorbis audio.

Features include adjusting bass, treble, volume digitally, 8 GPIO pins for LEDs or buttons, lightweight SPI interface, MIDI mode for synthesizer functionality, onboard 3.3V and 1.8V regulators, microphone input port for recording, onboard MicroSD card holder, and 5V compliant interface pins with level shifters.

Each order comes with a fully assembled and tested breakout board, 0.1″ male header for breadboard compatibility, and a stereo headphone jack.

• Compatible with Arduino and many microcontrollers
• New v2 includes 220uF stereo blocking capacitors on output for headphone safety
• Dimensions: 27.72mm x 58.08mm (1.09″ x 2.28″)
• Updated to v4 with 1uF capacitor on acap pin for stability

Learn more with our detailed tutorial and Arduino library for playing, recording, and MIDI synthesizer functionality.
