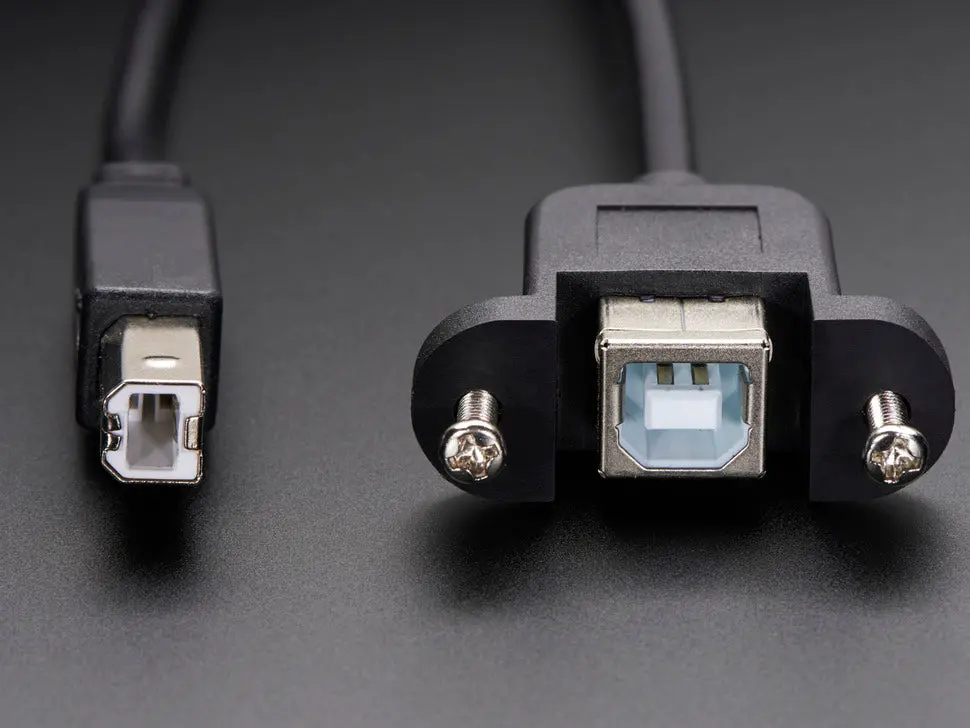

USB Panel Mount Cable: Type B Male to Type B Female

Description

This handy USB extension cable makes it easy to enclose a device with a USB type B port, ideal for projects like enclosing an Arduino in a box.

• Panel mount USB type B socket with USB type B plug at cable end.
• 28 AWG data and 24 AWG power wires.
• Cable length: 13 inches (330mm) from connector to connector.
• Two M3 mounting screws with 1.1 inches (29mm) spacing between them for secure panel mounting.
• Supports panel or box walls between 0.125 inch to 0.25 inch thick. Shorter screws can be used for thinner walls.
• Panel mount end dimensions: 1.5 inches x 0.57 inches (38mm x 14.5mm).
