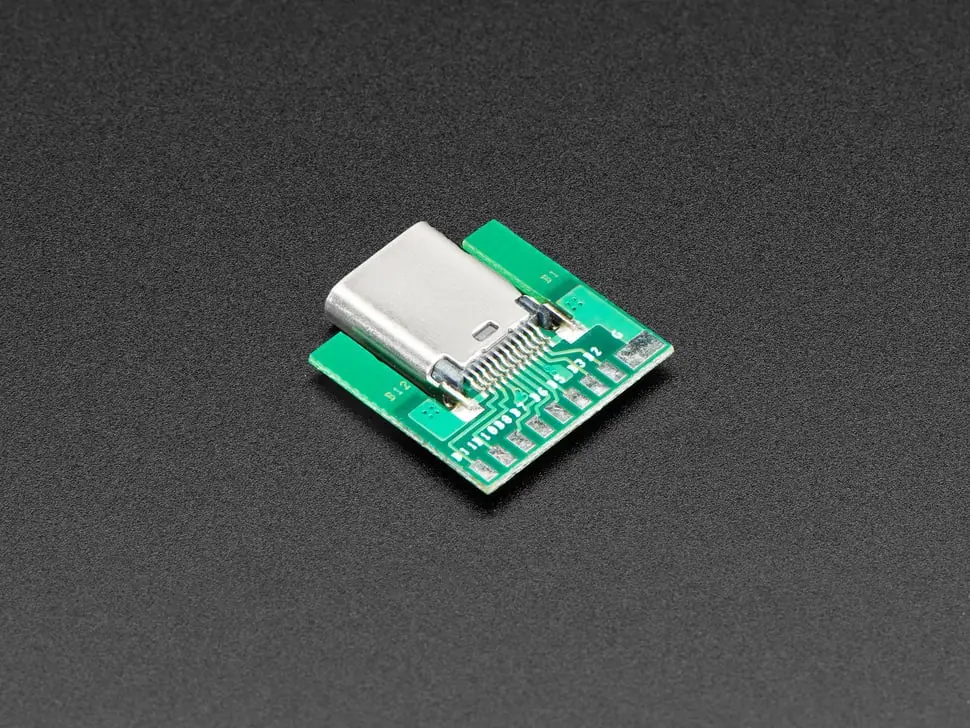

USB-C SMT Inline Breakout Board Featuring Integrated Type-C Socket

Description

This USB Type C breakout board is an inline style SMT connector breakout with pads for soldering to connections, ideal for custom cable harnesses.

Unlike the right angle USB C socket breakout, it features a true dual-row USB C connector and breaks out all pads.

Note: This breakout does not include any resistors for direction/current setting, which are required for USB C enumeration.

It’s a simple connector breakout that is useful for inline connections requiring a range of pin connections.

For more details, refer to the Introduction to USB C app note.

• Product Dimensions: 17.0mm x 15.6mm x 3.2mm (0.7″ x 0.6″ x 0.1″)
• Product Weight: 1.0g
