USB-C Plug Breakout Board

Description

A USB Type-C breakout board is a hardware component that provides easy access to the pins and functionalities of a USB Type-C connector. Since USB-C is reversible and can deliver up to 1.5 Amps of power, you won’t ever have to worry about plugging a cable in the incorrect way again.



It allows you to interface with Type-C devices, such as smartphones, laptops, or development boards, for various purposes.

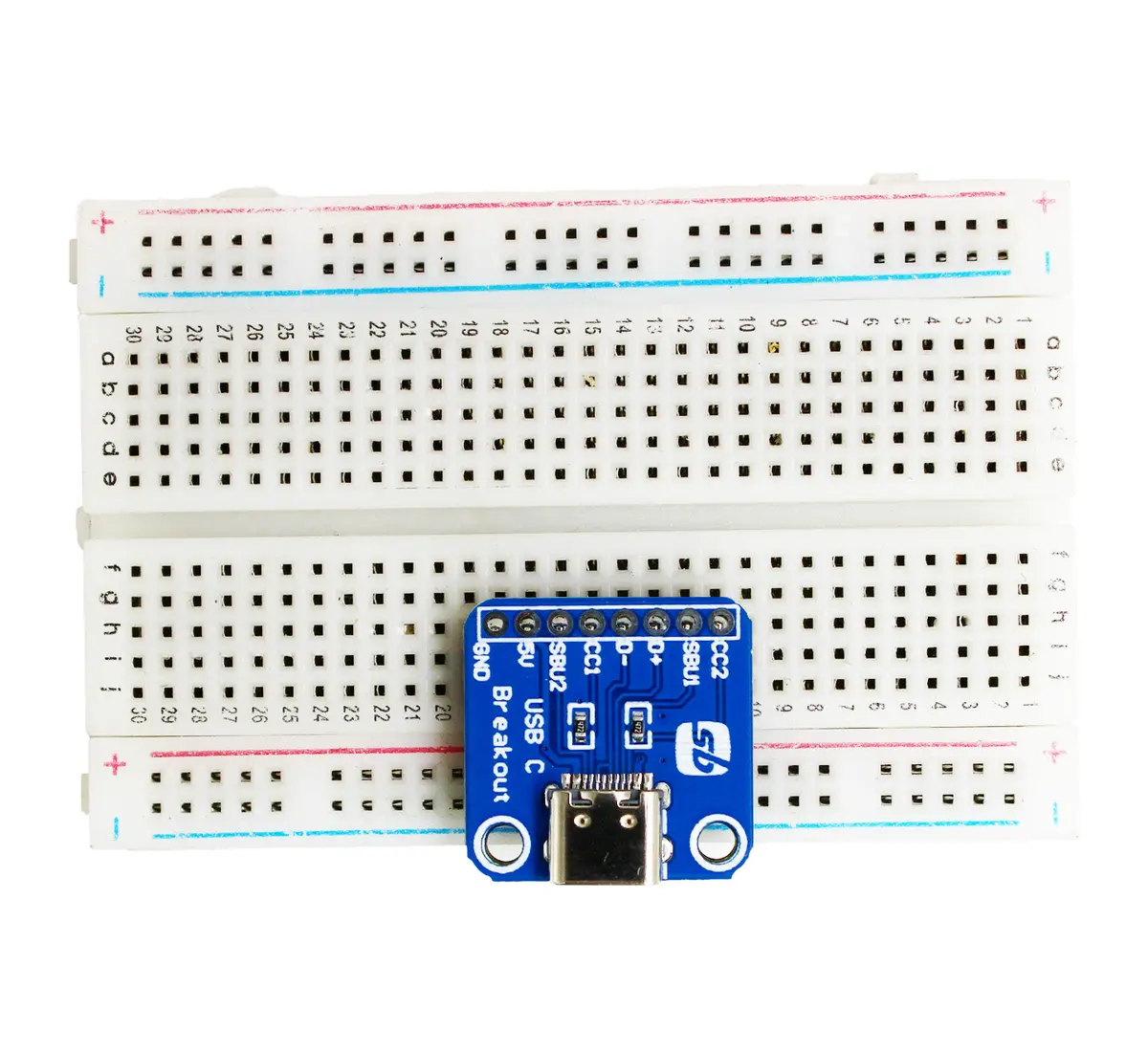

The breakout board typically features a Type-C connector on one end and exposed pins or headers on the other end. These exposed pins provide access to different signals and power lines, like CC1/CC2, SBU1/SBU2, D+/-, 5V, and GND. Breakout includes a 0.1″ pitch header, allowing for a simple breadboard connection.

With a Type-C breakout board, you can perform tasks like power delivery, data transfer, or testing of Type-C functionalities. It enables you to prototype and develop projects that require interfacing with Type-C devices or integrating Type-C functionality into your designs.

Overall, a Type-C breakout board is a useful tool for working with USB Type-C connectors and exploring the capabilities of Type-C devices in your projects.

Function:

Features:

• Connector Type: USB Type-C
• Reversible plug
• No upstream/downstream facing connector. The cable now has the same connector on both ends.
• Power Delivery (PD) Support
• Backward compatible with older USB versions.

Specifications:

• Contact Current Rating: 3A Max.
• Rated Voltage: 30V Max.
• Operating temperature: -40°~+85°
• Mechanical Characteristics:
• Insertion force: 5~20Nf.
• Withdrawal Force: 6~20Nf.
• Durability Cycles: 10000 Cycles.
• Weight: 3g (0.1oz)

Pinouts:

1. 0.1” Pitch Header Breakout
2. Type C connector

Dimensions:

Applications:

• Prototyping and Development
• Testing and Debugging
• Custom Cable Creation
• Integration into Custom Devices
• Educational and Learning Purposes, Reverse Engineering

Resources:

Hardware Repository: Schematic, 3D, Dimension files, Etc.

USB C General Datasheet
