USB-A Panel Mount Cable: Male to Female

Description

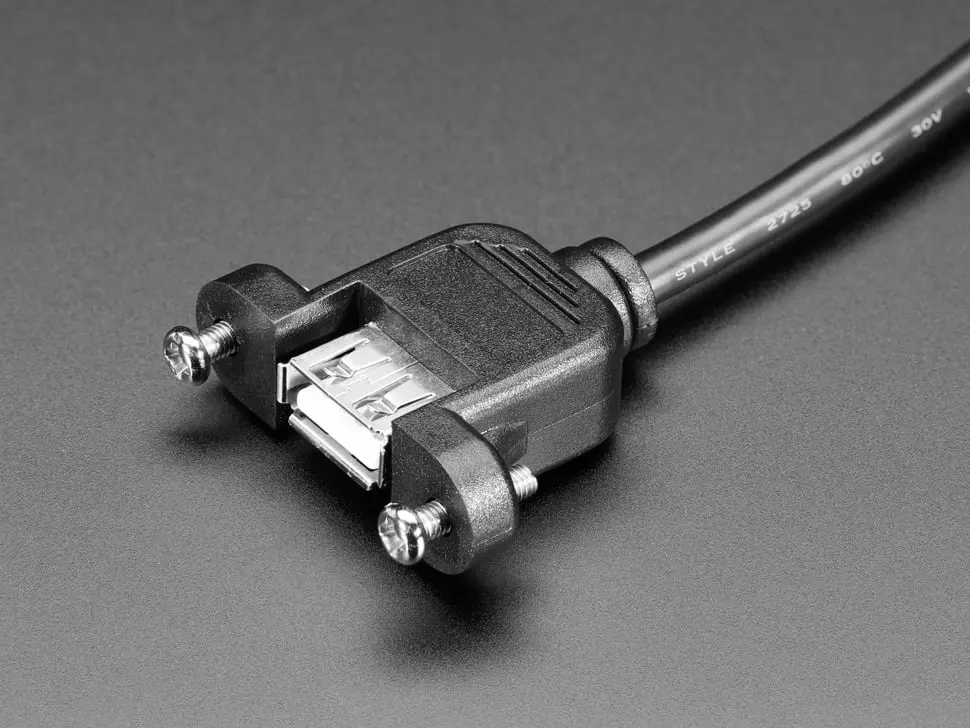

This handy USB extension cable is ideal for enclosing devices with a USB type A host port, such as Beagle Bone, Raspberry Pi, or Mintyboost. The female jack half has two mounting ‘ears’ with 12mm M3 screws installed, spaced 30mm apart. The flexible ears allow for less precise drilling and can accommodate box walls up to 0.25″ thick. Screws may be mounted from the back for ‘reverse’ mounting to accommodate thicker boxes. The entire assembly measures 13.4″ (340mm) in length, with 10.2″ (259mm) of cable between the USB connectors.

• Panel mount USB type A socket with USB type A plug at cable end
• 28 AWG data wires, 24 AWG power wires
• Shielded with wire braid
• Length: 13.4″ (340mm) total, 10.2″ (259mm) cable length
• Mounting screws: 2 x 12mm M3, 30mm apart
• Weight: 27g

Datasheet PDF | Diagram PDF
