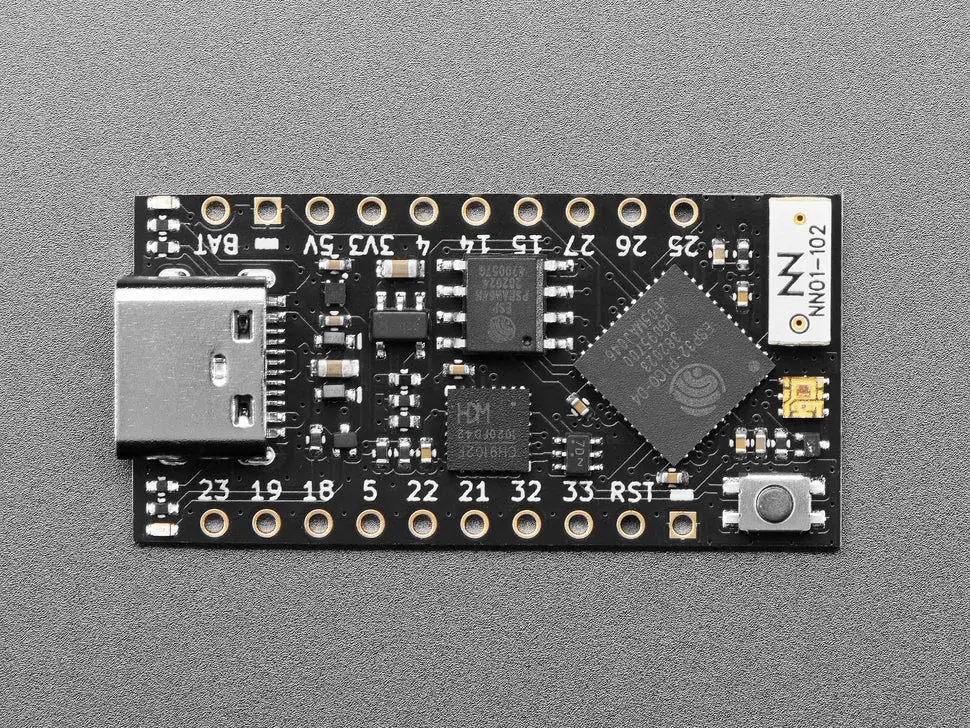

Tinypico ESP32 USB-C Development Board

Description

TinyPICO is the world’s smallest, fully-featured ESP32 development board, designed to unlock the power of the ESP32’s dual-core 240MHz and internet connectivity, in a package smaller than your thumb!

This USB-C version of the TinyPICO V3 comes with unassembled male headers and a JST PH battery connector, and MicroPython pre-installed.

The TinyPICO V3 features a massive 700mA 3.3V regulator, on-board battery management, RGB LED, 4MB of extra PSRAM, and 14 GPIOs in a compact design optimized for ultra-low current use.

• Ultra-low current use: drops as low as 20uA in deep sleep.
• Optimized power path and power management with isolated 5V and 3.3V power paths.
• Power & charge LEDs shut down when no 5V power source present.
• Built-in USB-to-Serial converters: CP210x or CH9102F depending on batch.
• Onboard APA102 RGB LED controlled via GPIO13 and high-side P-channel MOSFET for low power deep sleep.

Helper functions are available in TinyPICO MicroPython & Arduino libraries to manage power and LED control efficiently.

Note: This is the USB-C TinyPICO V3 version, different from the V1 with Micro-B USB.
