SOIC-14 and TSSOP-14 SMT Breakout PCB – 6-Pack

Description

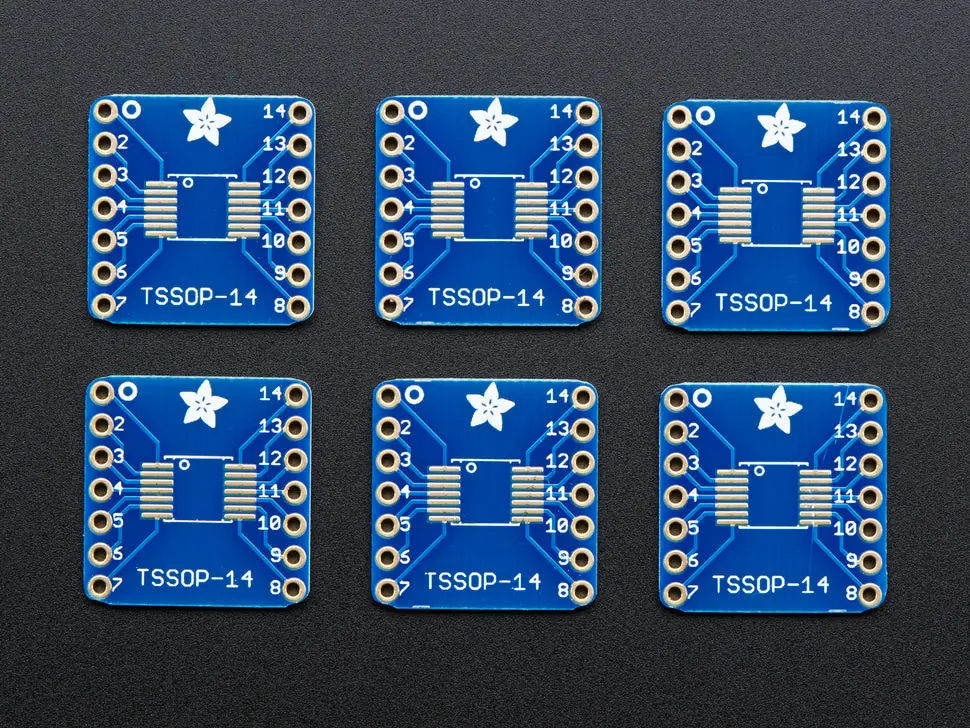

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 14-TSSOP pin out with traces going to two rows of 0.1″ spaced holes, the other has 14-SOIC. Solder your chip to either side and you’re ready to rock on any solderless breadboard.

Each item comes with six PCBs; each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6″ spacing between the two rows. You can of course use a smaller chip but the pin numbering won’t be right, so use care.

Package Includes:

• 6 x SMT Breakout PCB for SOIC-14

Note: Board does not include header
