Description
Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much easier and get you prototyping faster than ever.

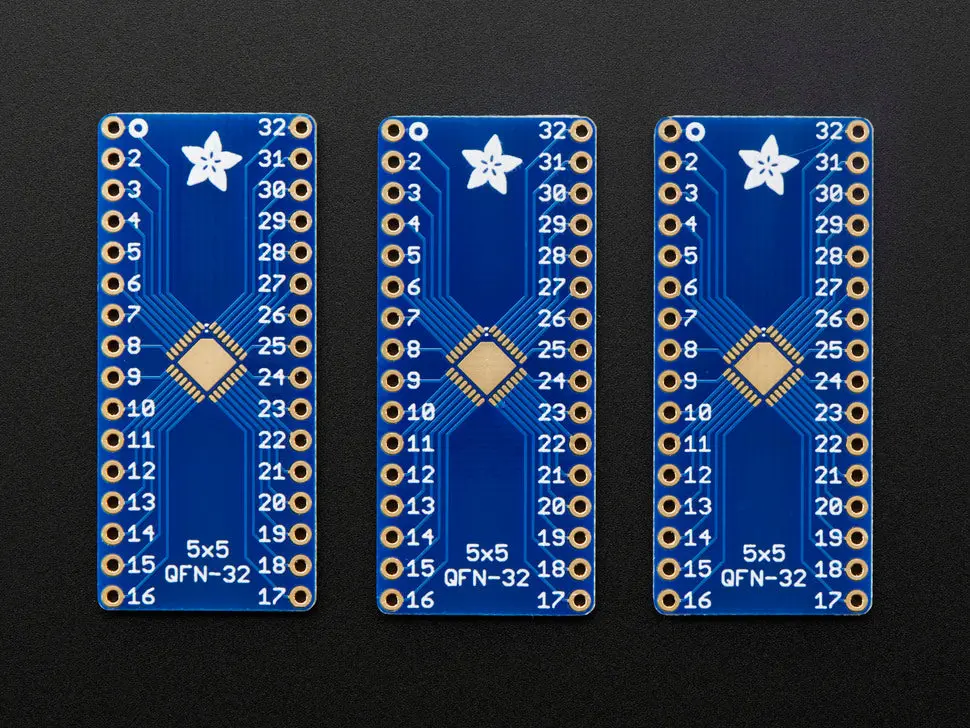

One side has a 32-QFP pin out with traces going to two rows of 0.1″ spaced holes; the other has 32-QFN. Solder your chip to either side, and you’re ready to rock on any solderless breadboard.
Each item comes with three PCBs; each PCB is identical and can support either a 7mm square QFP or 5mm square QFN chip. Standard thickness PCBs, with 0.6″ spacing between the two rows.
Note: Board does not include headers, so consider purchasing break-away 0.1″ 36-pin strip male header separately.
Features:
- Three PCBs per pack, each supporting 32-QFP or 32-QFN chips
- Supports 7mm square QFP or 5mm square QFN chip sizes
- Standard thickness PCB with 0.6″ spacing between rows
- Compatible with solderless breadboards via 0.1″ spaced holes
Technical Details and Resources:
- GitHub repository with CAD files
- RoHS 2 2011 65 EU Compliant
- RoHS 2 2015 863 EU Compliant
