Description
Beguiled by a fancy new chip only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life easier and get you prototyping faster than ever.
One side features a 12-TSSOP pin out with traces to two rows of 0.1″ spaced holes; the other side supports 12-SOIC. Solder your chip to either side, and you’re ready to use any solderless breadboard.

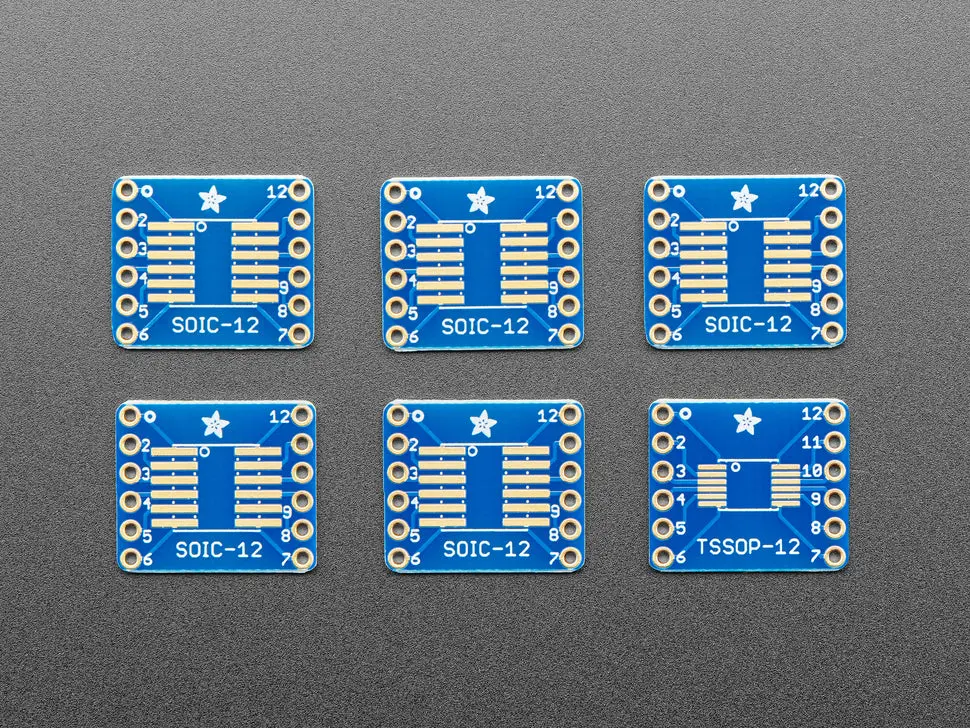

Each set includes six identical PCBs capable of supporting SOIC (narrow, medium, or wide) or TSSOP packages. The PCBs have 0.6″ spacing between the two rows. Smaller chips can be used with care as pin numbering may not match.
Note: Headers not included, consider purchasing Break-away 0.1″ 36-pin strip male header – Black – 10 pack separately.
- 6 identical PCBs per pack
- Supports SOIC-12 and TSSOP-12 packages
- Pin spacing: 0.1″ holes with 0.6″ row spacing
- Ideal for SMT prototyping on solderless breadboards
Visit our SMT Breadboard Prototyping Using Breakout PCBs guide to learn more about using these PCBs.
