Description

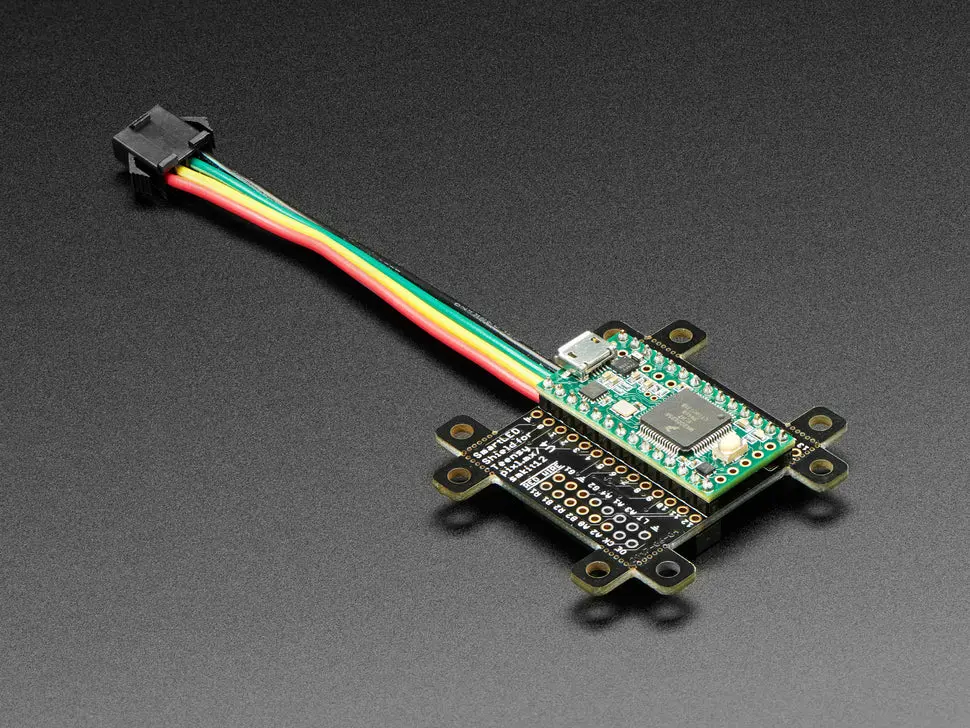

The SmartMatrix SmartLED Shield (V4) for Teensy 3.2, 3.5, or 3.6 is an easy-to-use shield designed to connect your Teensy board to RGB LED Matrix panels with minimal soldering required. Perfect for creating stunning LED matrix displays and animations, it supports 64×64 pixel displays with the latest library version and includes 5V level shifters for compatibility with 5V panels.
- Fully assembled shield with no soldering needed except pins for Teensy
- HUB75 pinout for direct connection or via panel ribbon cable
- Includes 5V level shifters for 5V LED panels
- Supports driving Dotstar/APA102 LEDs in parallel
- Expansion rows for Teensy pins useful in prototyping
- Teensy is easily removable from the shield
- Latest library supports 5 address pins for large 64×64 displays
Note: MicroSD card slot removed as redundant with Teensy 3.5/3.6. Programming with SmartMatrix library is required to use the shield.
Kit contents:
SmartLED Shield V4, Male 4-pin JST SM Cable (10cm), 2×8 Extra Long Pin Header.
Dimensions and Weight: 52mm x 49mm x 6mm, 12g (board only), 22g with header and cable.
