Slim USB Micro-B Plug Housing for Custom DIY Connector Builds

Description

Make your own USB connections without slicing apart a USB cable and soldering those thin wires inside. This is the ‘slim’ version of the DIY MicroB Male connector. It offers a more elegant design that press-fits into the overmolding for a modern look. Ideal for DIY USB projects requiring MicroB male connectors.

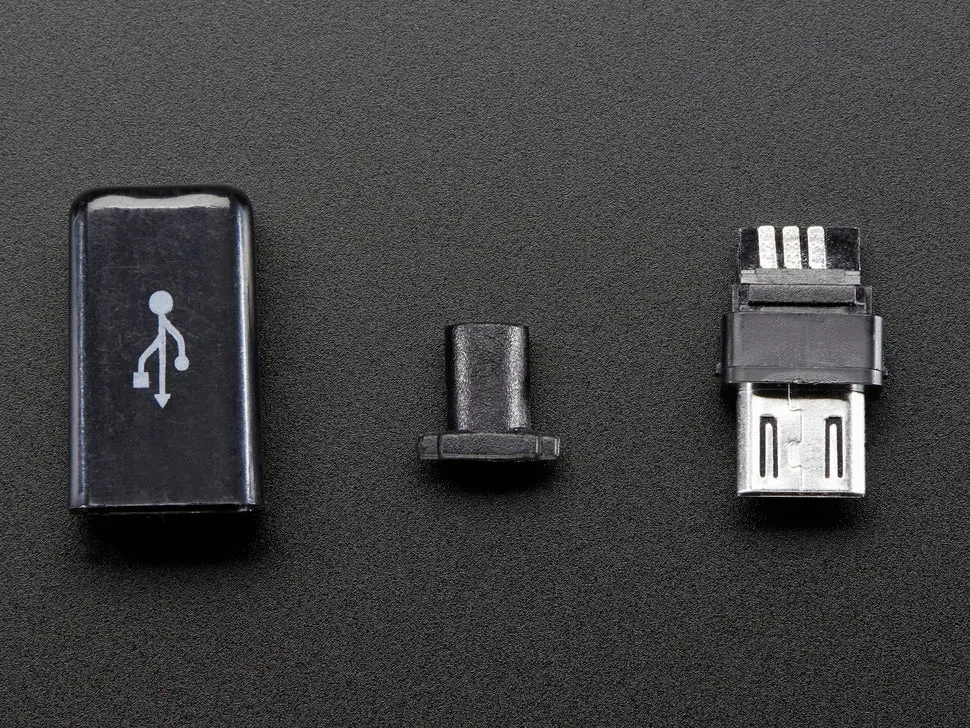

The connector includes a plastic shell and a proper connector with easy-to-solder tabs, with all 5 pins brought out—3 on one side and 2 on the other.

• Assembled Dimensions: 26mm x 10mm x 7mm (1″ x 0.4″ x 0.3″)
• Assembled Weight: 1.22g
• Micro USB Connector Dimensions: 14mm x 8.5mm x 6mm (0.6″ x 0.3″ x 0.2″)
• Micro USB Connector Weight: 0.6g

Check the pinout image for more details and explore compatible USB DIY shells available in USB A plug, micro B, mini B, and USB A socket formats.
