Description
If you have a standard servo and need to connect it to a board that accepts crocodile clip connections, our Servo to Crocodile Clip Adapter Cable is the perfect accessory for you.

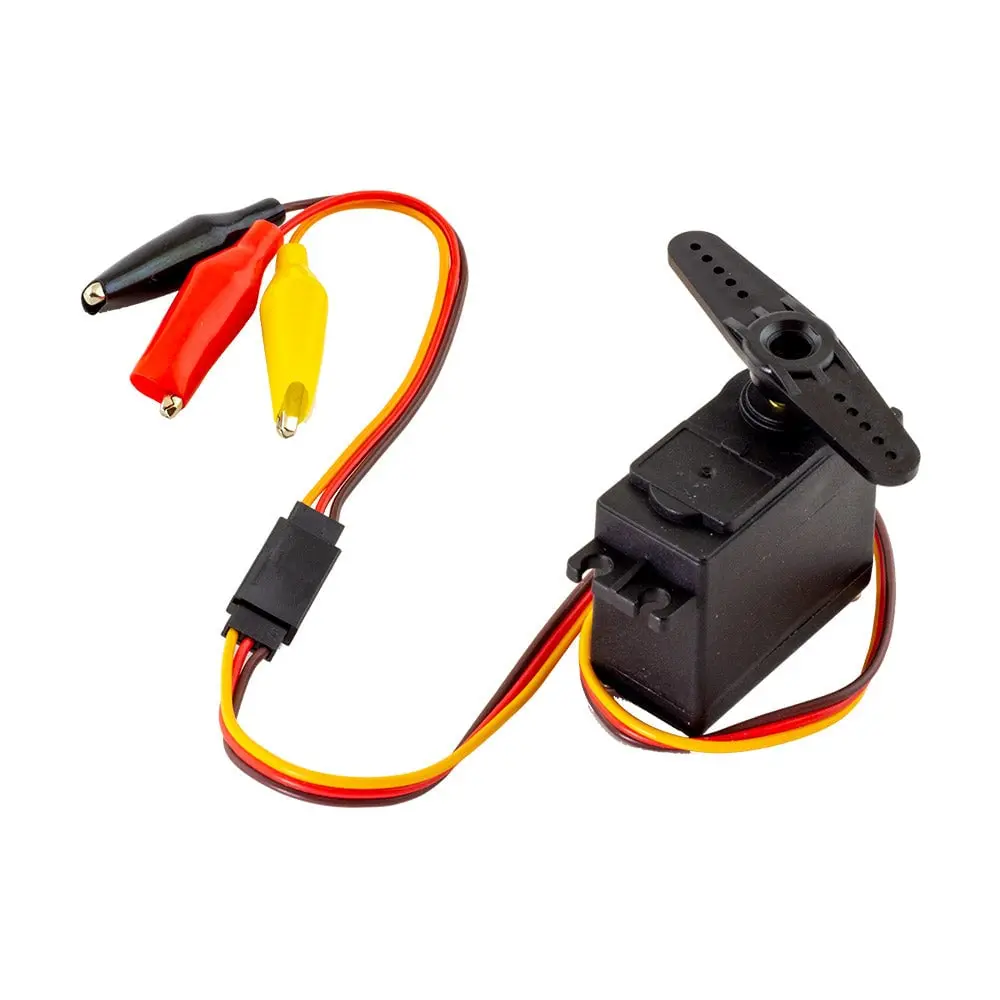

This adapter cable features 100mm colour coded cables terminating in a male servo connector at one end and colour coded 35mm crocodile clips at the other end. It is ideal for connecting standard servos to the Kitronik Klip Motor Driver Board for micro:bit.
Features:
- Allows attachment of a standard servo to a board with crocodile clip connections.
- Colour coded 100mm leads and crocodile clip covers for easy identification.
- Ideal for use in robotics and buggy projects.
Pin Assignments:
| Wire Colour | Clip Cover Colour | Usual Servo Assignment |
|---|---|---|
| Brown Wire | Black Clip Cover | GND |
| Red Wire | Red Clip Cover | +ve |
| Orange Wire | Yellow Clip Cover | Signal |
Contents:
- 1 x Servo to Crocodile Clip Adapter Cable
Dimensions:
- Length: 135mm
Requires:
- A suitable servo
- A crocodile clip ready board such as the Kitronik Klip Motor Driver Board
Resources:
- Technical Drawing (PDF)
