Description
If you need to add a panel-mount connection for USB C but don’t have the time or tools to cut a custom oval or square hole, this USB C jack to USB Micro B jack Round Panel Mount Plug is the easiest and fastest way to panel-ify your project.
It is about 30mm in diameter, so you can drill a hole in your wood, plastic, or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Ta-da! Now you have a USB C socket to USB Micro B socket adapter!

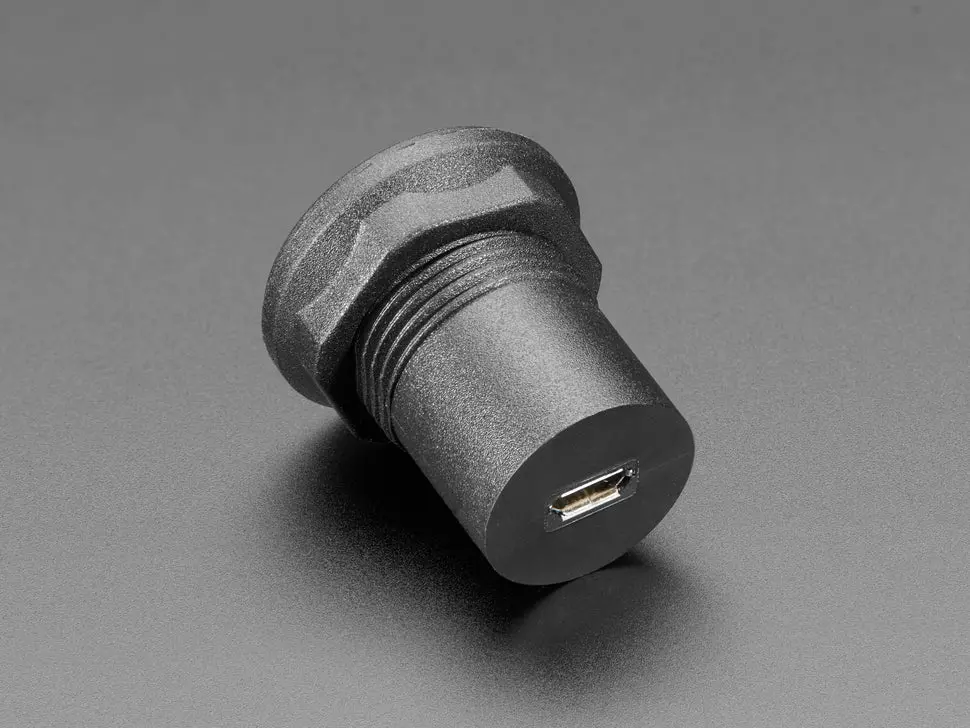

On the ‘outer’ side is a USB C connection. On the inside is a micro B connection. This is good for when your device doesn’t need more than USB 2.0 speeds, and you want to use a flexible USB-to-micro-B cable for the inner connection but expose a USB C port.
It’s designed to easily attach to a panel up to 16mm thick (or 0.625″), or as thin as a few mm. Perfect for adding a USB C port to your project enclosure! The plug has a solid body and a ‘forgiving’ plastic lip that hides the drill hole.
Please note – this adapter only has data/power on one side of the USB C connector. If you have any problems with the USB C adapter, try flipping one of the cables over.
Features:
- Round panel mount USB C jack to USB Micro B jack adapter
- Easy to install with a 30mm diameter drill hole
- Supports USB 2.0 speeds
- Fits panels up to 16mm thick
- Solid body with plastic lip to hide drill hole
Technical Details:
- Overall length: approx 33mm
- Diameter: 30mm
See also: USB C to USB A host panel mount adapter.
