Raspberry Pi Stacking Header with Extended Pins – 2×20 Pin, 5-Unit Set

Description

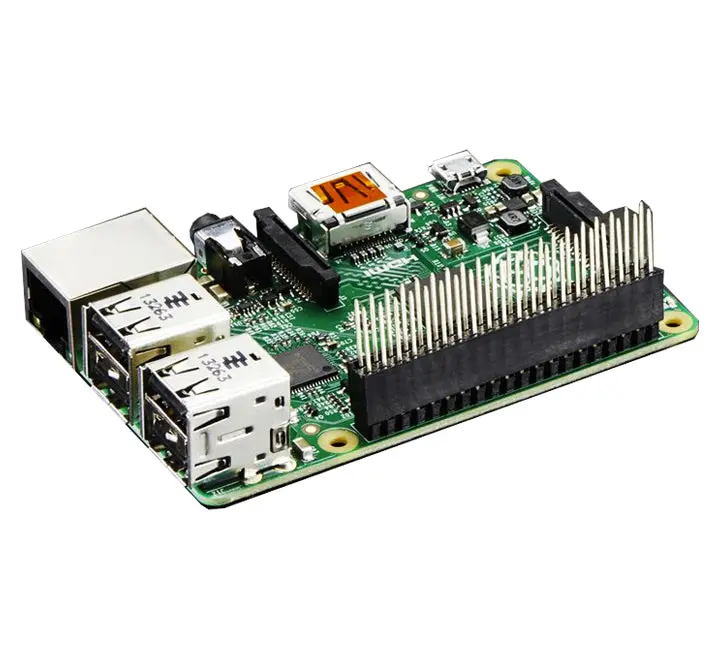

Stack multiple plates, breakouts, etc onto your Raspberry Pi Model B+ with this custom-made extra-tall and extra-long 2×20 female header. The female header part has extra spaces to make it 23mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 10mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8.5mm remaining, plenty to plug into.

Note: The Raspberry Pi Model A+, Raspberry Pi 2 and Raspberry Pi 3 are also compatible with this product!

Features

• Good for small HATs
• Square shaped pins 0.6mm thick
• Extra long 10mm pins

Specifications

• Dimensions: 5mm x 51mm x 23mm / 0.2″ x 2″ x 0.9″
• Pin Length: 10mm
• Pin Spacing: 2.5mm / 0.1″
• Pin Thickness: 0.6mm / 0.02″
• Weight: 6.5g

Kit Content

• 1 x Extra Long Pins RPi Stacking Header
