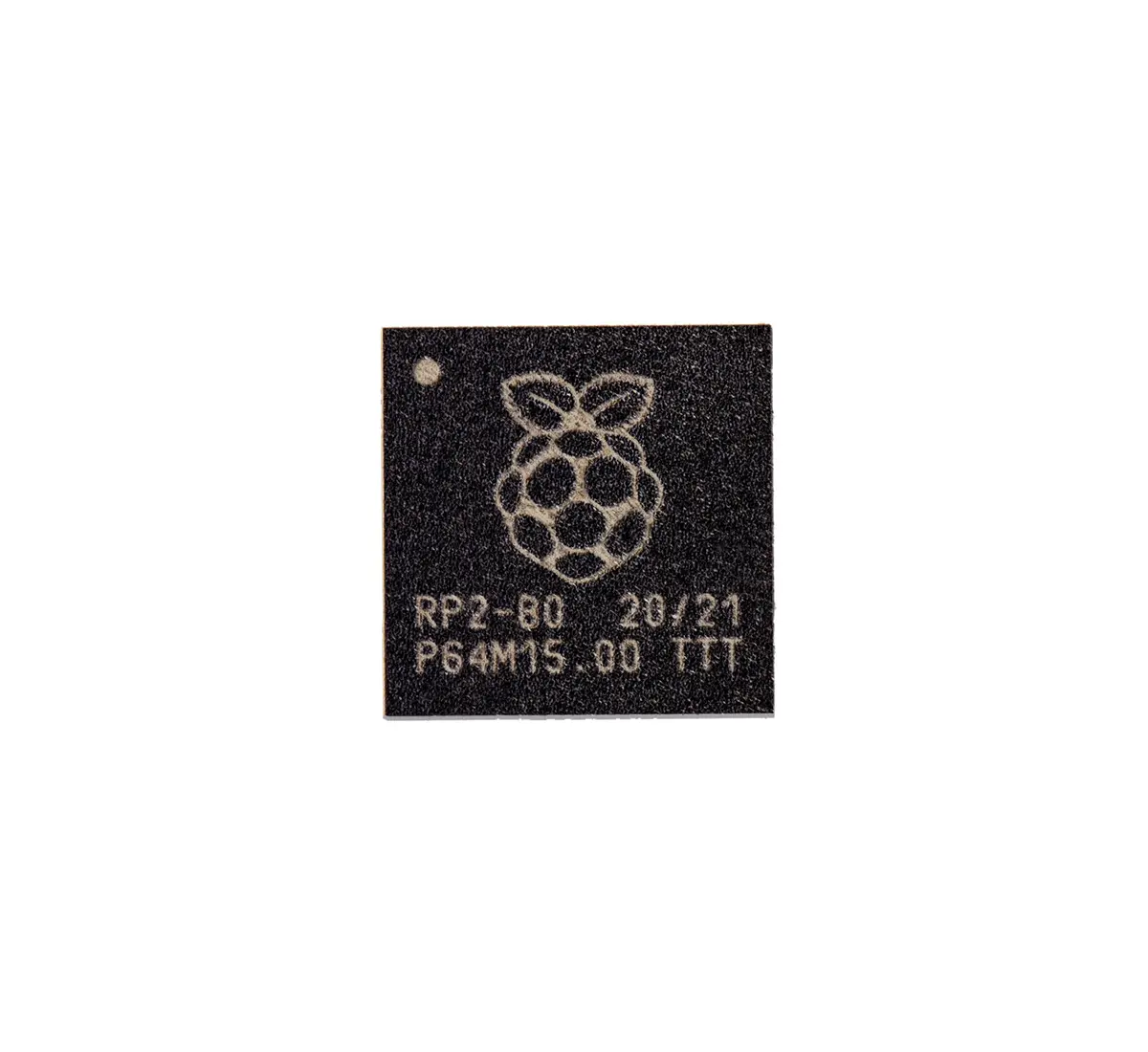

Raspberry Pi RP2040 Microcontroller Chip

Description

The RP2040 is an advanced microcontroller with flexible digital interfaces, offering an impressive balance of efficiency, power, and affordability in a compact size. It features a low-power ARM processor and dual-core ARM Cortex-M0+ running at up to 133MHz, making it ideal for IoT, robotics, automation, and embedded systems.

With 264KB of on-chip RAM, a DMA controller, and multiple interfaces—including 2× UARTs, 2× SPI controllers, and 2× I2C controllers—the RP2040 is designed for high-speed processing and versatile connectivity. One of its greatest advantages is the inclusion of the powerful RP2040 chip at a budget-friendly price, enabling developers to build cost-effective embedded electronics projects without compromising on performance.

Features:

• Dual-Core Processor: ARM Cortex-M0+ running at up to 133MHz
• High-Speed Memory: 264KB SRAM for efficient data processing
• Expandable Storage: Supports off-chip Flash via QSPI interface
• USB Support: Full-speed USB 1.1 Host and Device mode
• Versatile I/O: 30 multifunctional GPIO pins
• Programmable I/O (PIO): 8x state machines for custom peripherals
• Multiple Interfaces: Supports I2C, SPI, UART, PWM, and ADC
• Low-Power Modes: Sleep and dormant modes for energy efficiency
• Debugging Support: SWD (Serial Wire Debug) port
• Official Software Support: Compatible with C/C++ SDK and MicroPython

Specifications:

• Processor: Dual-core ARM Cortex-M0+ (up to 133MHz)
• SRAM: 264KB multi-bank SRAM
• Flash Memory: Supports external QSPI Flash
• GPIO Pins: 30 (26 usable, 3 ADC capable)
• Analog Support: 12-bit ADC, 500ksps sampling rate
• Connectivity: USB 1.1, 2x UART, 2x I2C, 2x SPI, up to 16 PWM channels
• Programmable IO: 8x PIO state machines for custom peripheral support
• Operating Voltage: 1.8V – 3.3V
• Debugging Interface: 3-pin ARM Serial Wire Debug (SWD)

Kit Content:

• 1 x RP2040 Chip Only

RP2040 Datasheet
