Description
Cytron’s Maker Pi RP2040 features the Raspberry Pi RP2040 chip on a versatile robot controller board that includes a dual-channel DC motor driver, 4 servo motor ports, and 7 Grove I/O connectors. Easily build your new robot projects while experiencing the power of the RP2040 chip!
The onboard motor driver supports 2 brushed DC motors or 1 bipolar/unipolar stepper motor rated 3.6V to 6V, delivering up to 1A continuous current per channel. Quick test buttons and motor output LEDs enable convenient hardware testing without programming. The power management allows supply via USB (5V), 1-cell LiPo/Li-Ion battery, or VIN (3.6-6V), with an onboard power switch and charger protection.
The Maker Pi RP2040 also offers numerous LEDs for status indication, a piezo buzzer with mute switch, pushbuttons, and RGB NeoPixel LEDs. Preloaded with CircuitPython and compatible with MicroPython, C/C++, and Arduino ecosystems, it is ideal for makers and robotics enthusiasts.
- Powered by Raspberry Pi RP2040 dual-core Cortex-M0+ processor, 264KB RAM, 2MB flash
- Robot controller board with 4 servo ports and 2 DC motors with test buttons
- Automatic power selection: USB 5V, LiPo 1-cell, or VIN 3.6 – 6V with LiPo charger
- 13 GPIO status LEDs, piezo buzzer, 2 pushbuttons, 2 RGB NeoPixels
- 7 Grove ports supporting digital, analog, I2C, SPI, UART
- CircuityPython preloaded for easy programming
- Mounting holes including LEGO compatible and M3 screw holes

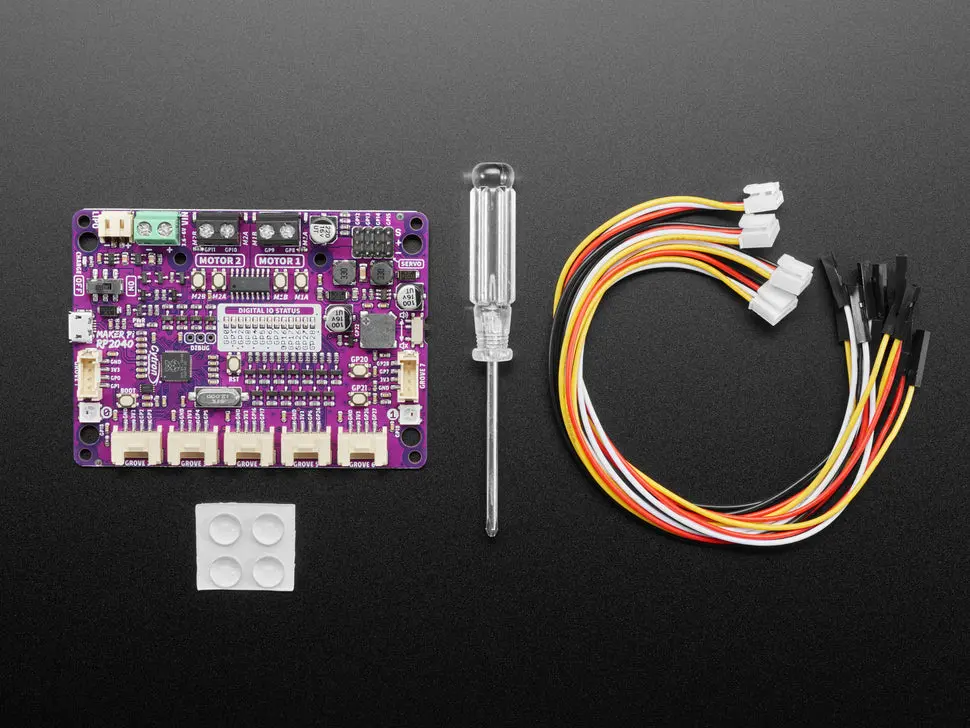

Includes: mini screwdriver, 4 bumper feet, 4 header cables.
Dimensions: 88.0mm x 64.0mm x 13.0mm.
