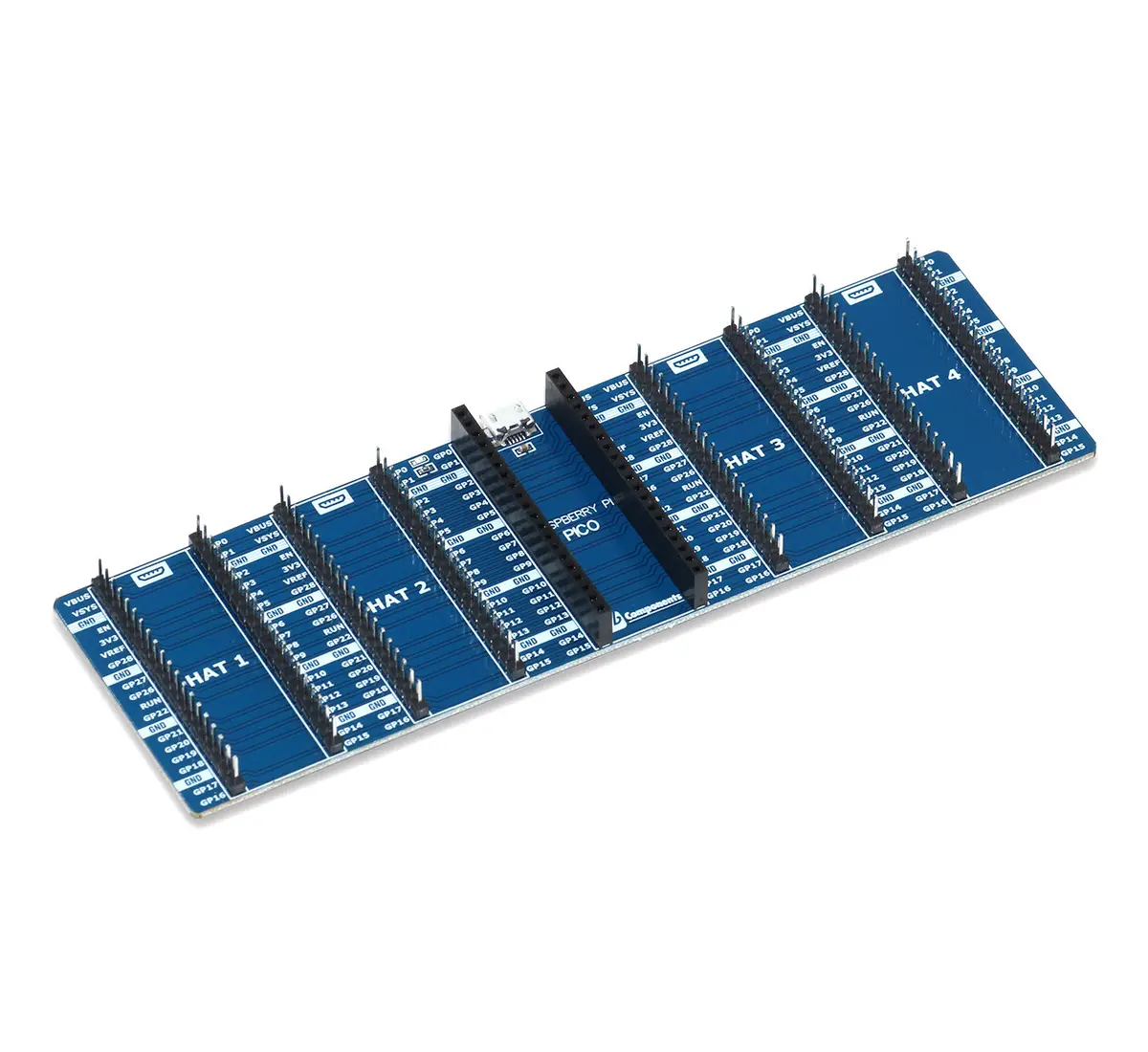

Raspberry Pi Pico 4-Channel Digital I/O Expander

Description

The Pico 4-Channel Expander is a versatile expansion board designed to enhance the connectivity of the Raspberry Pi Pico. Featuring 4 sets of 2×20 headers, it enables multi-HAT compatibility, allowing seamless integration of multiple sensors, modules, and shields. With clear pin labeling, it simplifies prototyping, making it an ideal choice for robotics, IoT, and industrial applications.

Features:

• Standard 40-Pin Raspberry Pi Pico Connectivity: Ensures easy and reliable connections
• 4 Sets of 2×20 Headers: Supports multiple HATs and shields simultaneously.
• Clear & Descriptive Pin Labels: Provides better understanding of connection points for effortless wiring.
• Multi-Device Compatibility: Works with various Raspberry Pi Pico HATs and Shields.
• Compact & Durable Build: Designed for long-lasting performance in diverse applications.

Specifications:

• Connector for HATs: Male Header Pins
• Compatibility: Supports any Raspberry Pi Pico HAT/Shield
• GPIO Pins: 29 (GP0 – GP28)
• Board Type: Multi-HAT Expansion
• Ideal for: IoT, robotics, home automation, and industrial control systems

Applications:

• Connect Upto 4 Pico HAT/Shield
• IoT
• Automation
• Prototypes

Resources:

• Wiki

Kit Content:

• 1 x 4 Channel Expander Board only

Note:  No Pico and other HATs Included
