Description

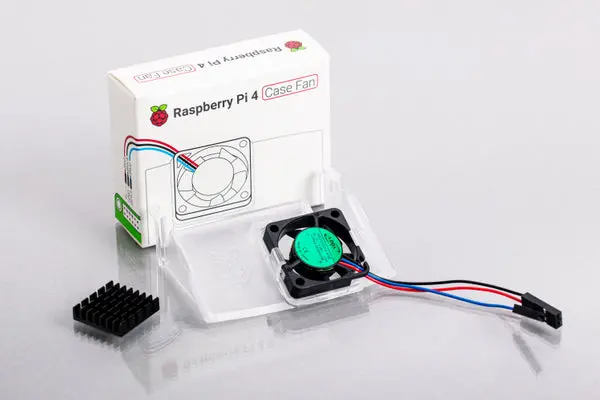

Raspberry Pi 4 Case Fan Works with Raspberry Pi 4 and the Raspberry Pi 4 Case. Designed for over clockers and other power users, it keeps your Raspberry Pi 4 at a comfortable operating temperature even under heavy load.
Features
- Fits perfectly into the lid of the Raspberry Pi 4 Case
- Temperature-controlled fan delivers up to 1.4CFM of air flow over the processor, memory, and power management IC
- 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.
Specification
- Input voltage: 5V DC supplied via 40-pin GPIO header on Raspberry Pi 4
- Fan speed control: Pulse width modulation control via user-selectable GPIO pin
- Maximum airflow: 1.4 CFM
- Case material: Clear PC
Documents
- Raspberry Pi 4 Case Fan – product brief
Kit Content
- Raspberry Pi 4 Official Case Fan & Heatsink
