Description

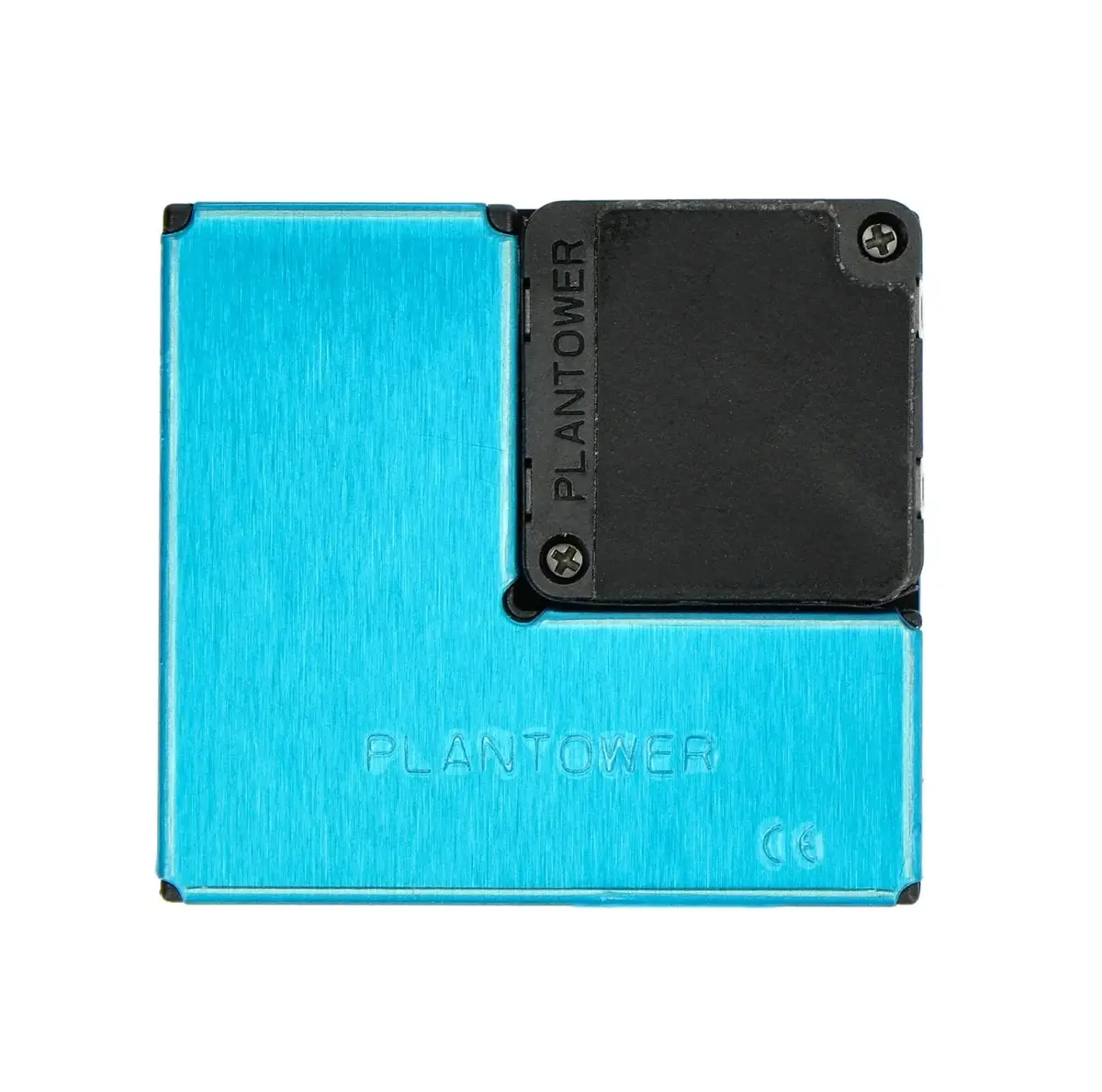

You can track and measure the quality of the air around you with this PMSA003I Air Quality Sensor, so you can breathe easily. This sensor is excellent for keeping track of air quality.
The PMSA003 is a general-purpose digital particle concentration sensor that outputs data in a digital interface form and can be used to measure the mass and number of suspended particles in the air per unit volume. To give precise and timely concentration data, the sensors can be integrated into a range of environmental devices that measure suspended particulate matter in the atmosphere.
| Parameter | Index | Unit |
| Particle Range of measurement | 0.3~1.0; 1.0~2.5; 2.5~10 | Micrometer（μm） |
| Particle Counting Efficiency | 50%@0.3µm 98%@≥0.5µm | |
| Particle Effective Range （PM2.5 standard） |
0~500 | μg/m³ |
| Particle Maximum Range （PM2.5 standard）* |
≥1000 | μg/m³ |
| Particle Resolution | 1 | μg/m³ |
| Particle Maximum Consistency Error (PM2.5 standard data) |
±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³ |
|
| Particle Standard Volume | 0.1 | Litre（L） |
| Single Response Time | <1 | Second（s） |
| Total Response Time | <10 | Second（s） |
| DC Power Supply | Typ：5.0 Min:4.5 Max:5.5 | Volt（V） |
| Active Current | ≤100 | Milliampere（mA） |
| Standby Current | ≤200 | Milliampere（mA） |
| Interface Level | L<0.8 @3.3 H>2.7@3.3 | Volt（V） |
| Working Temperature Range | -10~+60 | ℃ |
| Working Humidity Range | 0~99 | |
| Storage Temperature Range | -40~+80 | ℃ |
| MTTF | ≥3 | Year |
| Physical Size | 38mm×35mm×12mm | mm |
- Zero percent false alarms
- Timely reaction
- accurate data
- 0.3 micrometres is the smallest discernible particle diameter.
- High anti-interference performance as a result of the six-sided shielding patent construction.
- Optional air inlet and outflow directions to accommodate various designs
