Pistack Raspberry Pi HAT Stacking Kit – Supports Up to 3 Layers

Description

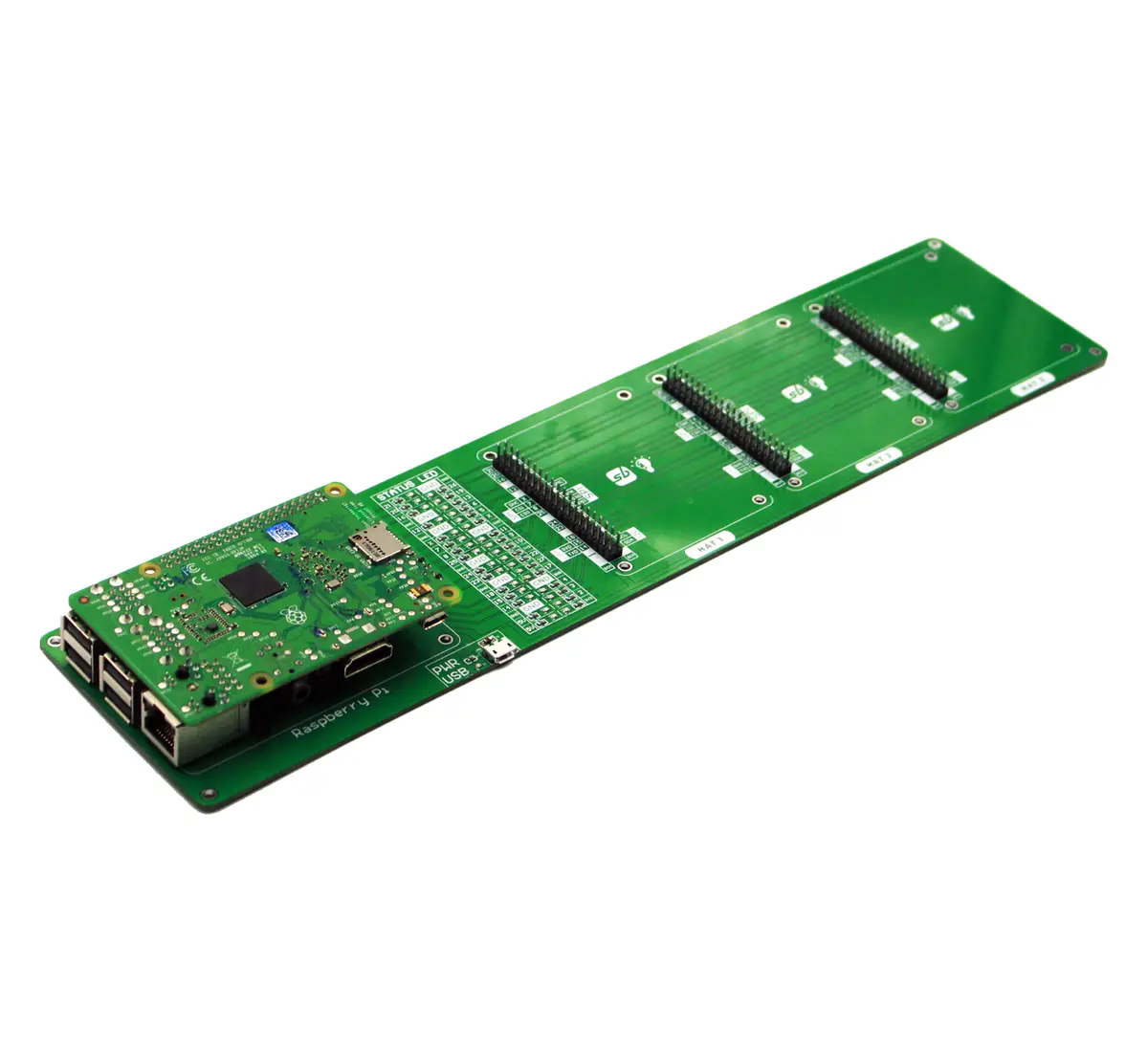

PiStack is an I/O expansion kit designed for Raspberry Pi, which provides 3 sets of 2×20 pin headers, which means a handy way of “stacking” multi different HATs together and using them as a specific combination/project. The kit comes with standard Raspberry Pi connectivity, directly pluggable OR through the ribbon cable.

It also comes with 3 sets of 2×20 pin headers, which means a handy way to “stack” multi different HATs together, and use them as a specific combination/project. The clear and descriptive pin labels for easy use make using the kit a breeze. The reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts.

Features

• Standard Raspberry Pi connectivity, directly pluggable OR through the ribbon cable.
• 3 sets of 2×20 pin headers, connect multi HATs together.
• USB external power port provides enough power supply for multi HATs.
• Clear and descriptive pin labels for easy use.
• Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts.

Resources

• PiStack GitHub.
